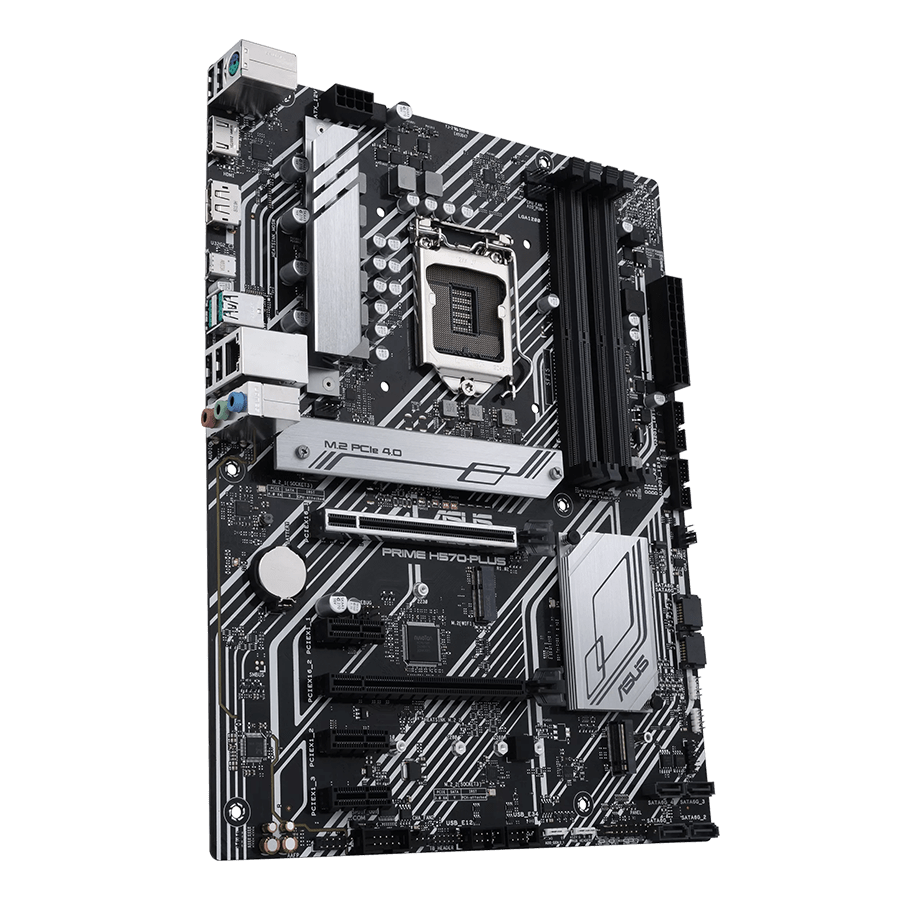

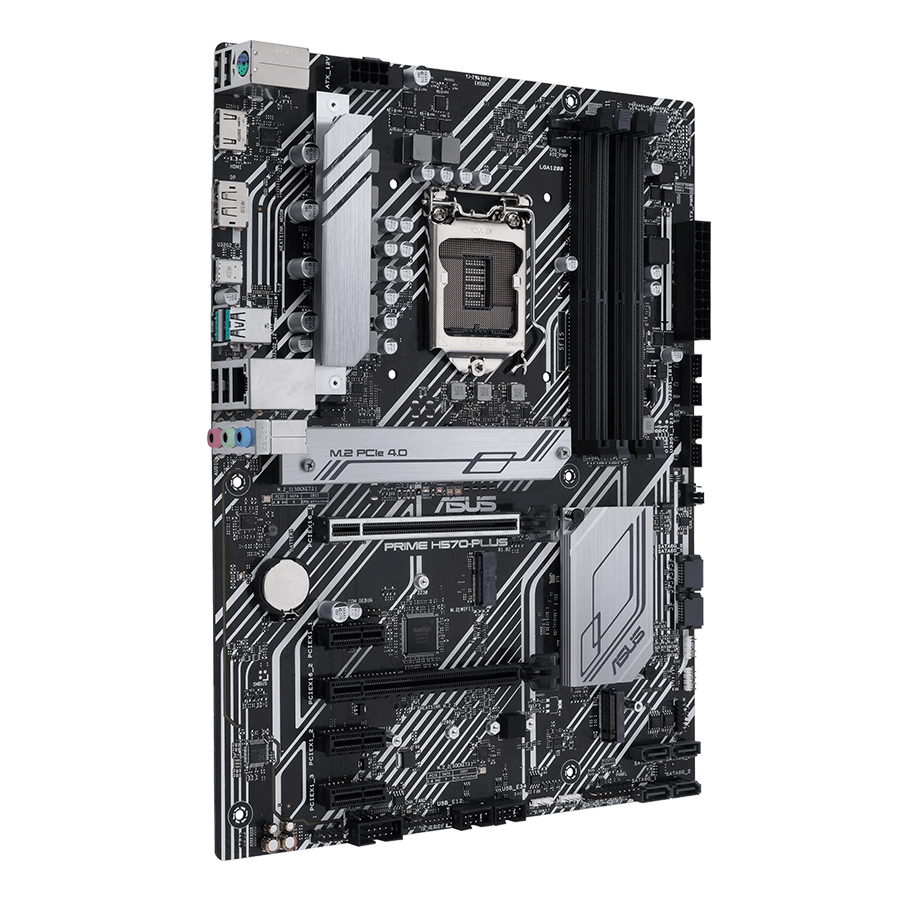

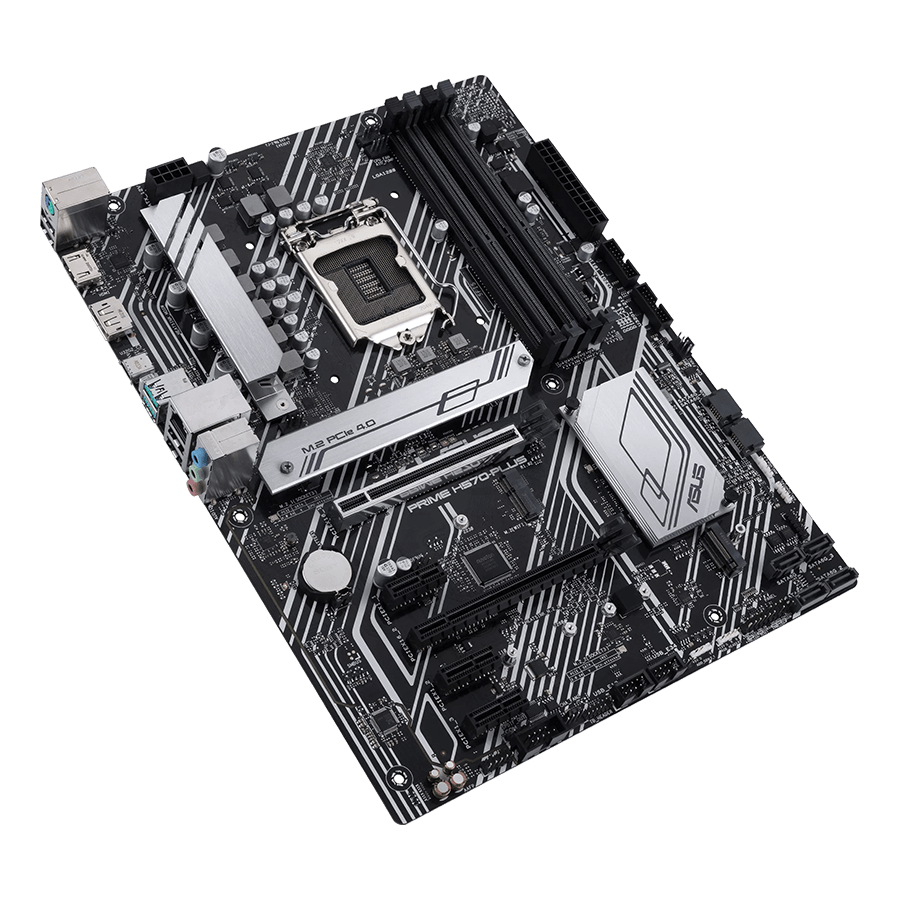

ASUS PRIME H570-PLUS
Intel® H570 (LGA 1200) ATX motherboard with dual M.2, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C®, rear USB 3.2 Gen 2, Thunderbolt™ 4 header support, PCIe 4.0, Aura Sync RGB lighting
Product image gallery
About this product
Details & use
Intel® H570 (LGA 1200) ATX motherboard with dual M.2, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C®, rear USB 3.2 Gen 2, Thunderbolt™ 4 header support, PCIe 4.0, Aura Sync RGB lighting
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/5
Specifications
Technical specs
Motherboard
- Chipset
- Intel H570
- Platform
- Intel
- Form factor
- ATX
- Clear CMOS
- Yes
- BIOS
- 194Mb Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- Prime
Processor
- CPU power connector
- یک pcs 8 پین
- CPU power circuit
- 8 فاز
- CPU generation
- نسل یازدهم, نسل دهم
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU socket
- LGA-1200
Memory
- Memory
- supports memory RAM DDR4 با up to frequency 4600 MHz
- RAM capacity
- 128 GB
- Memory type
- DDR4
- RAM slots
- 4 pcs
Expansion Slots
- PCIe x1
- PCIe 3.0, 3 pcs
- PCIe x4
- No
- PCIe x16
- یک slot PCIe 4.0 x16, یک slot PCIe 3.0 x16
Storage
- M.2
- یک pcs PCIe 4.0, یک pcs PCIe 3.0
- SATA III
- 6 pcs

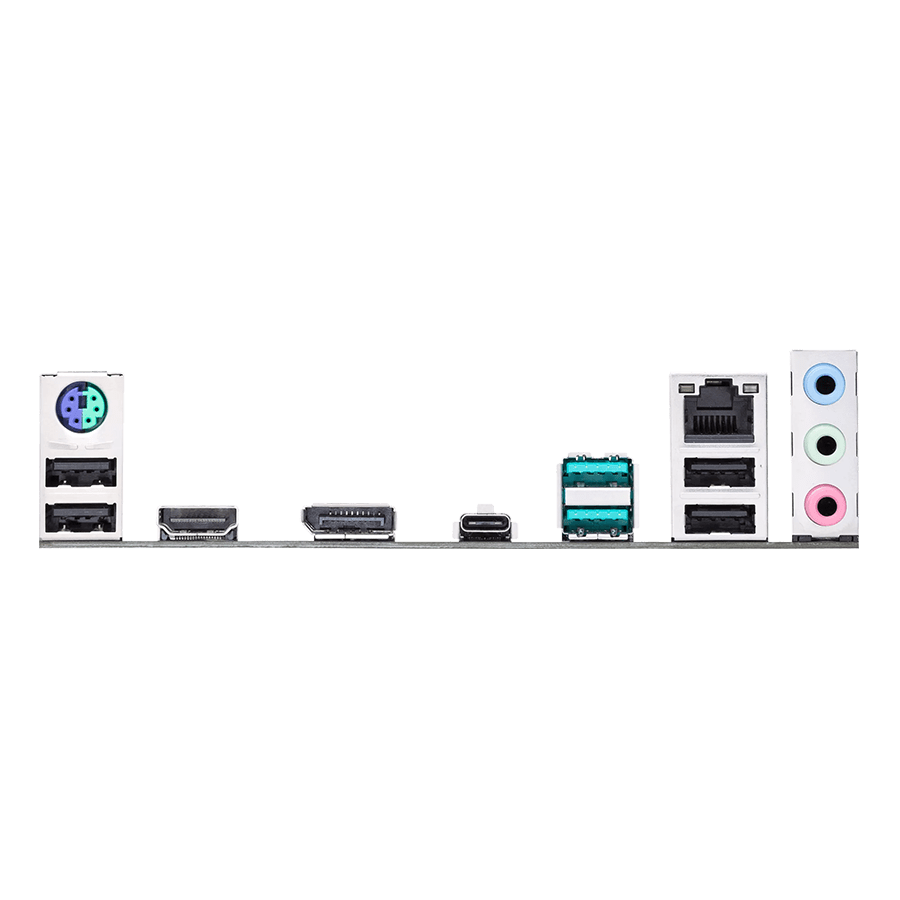

I/O & Connectivity
- HDMI
- Yes
- USB 3.2
- 3 pcs
- DisplayPort
- Yes
- USB 3.1
- No
- USB 3.0
- No
- USB 2.0
- 4 pcs
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- LAN
- Intel 1Gb Ethernet port
- Wi-Fi
- No
- Audio
- "Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- No
Power
- Power switch
- No
Other specs
- DVI
- No
- D-Sub
- No
- Intel Optane
- Yes
- Multi-GPU support
- No
- PCI
- No
- Configure
- دو کاناله
- 3.5 mm jack
- 3 pcs
- Debug display
- No
- LED color
- No
