SilverStone ST1000-PT

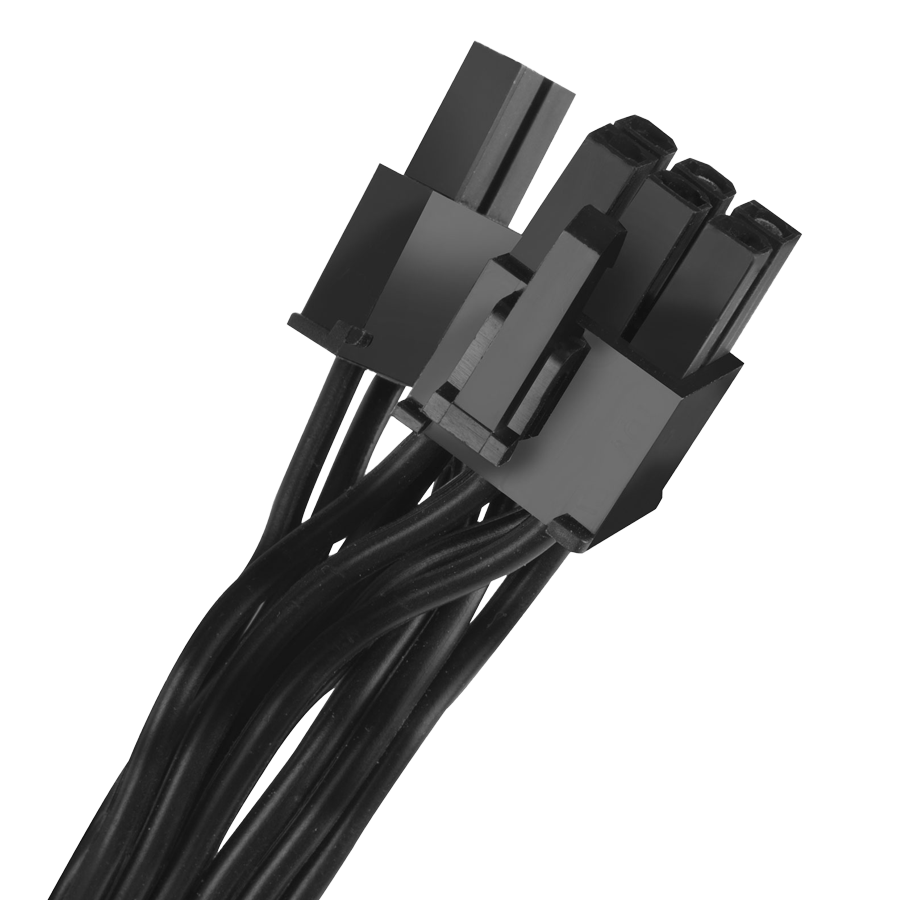

￭ High efficiency with 80 PLUS Platinum certification ￭ 139mm Air Penetrator fan with intelligent semi-fanless operation ￭ FF141 magnetized fan filter included ￭ 100% modular cables ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Strict ±3% voltage regulation and low ripple & noise ￭ Dual EPS 8pin with multiple individual one-on-one PCI-E 8/6pin connectors

Power SupplySilverStoneOfficial Taba warranty

← Prev Next →

About this product

Details & use

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

Photo 1/3

Specifications

Technical specs

Performance & Compatibility

Input Frequency Range: 47 تا 63 هرتز

Design & Dimensions

Dimensions: 86 × 150 × 180 mm
Weight: 3.3 kg
Form factor: ATX
Cooling system: Single 139mm silent fan

Other specs

MTBF: 100,000 hours
12V: 0.3 آمپر
Combined 12V: 83 آمپر
Color: Black (lead-free paint)
12-pin PCIe: No
Certification: 80 PLUS Platinum
8-pin PCIe: 6 pcs
Efficiency: 89%~92% at 20%~100% loading
3.3V: 25 آمپر
Cabling: فول ماژولار
Wattage: 1000W (Peak 1050W)
Input voltage: 90 تا 264 V
5V: 22 آمپر
24-pin connector: 1 pcs
Operating temperature: 0 تا 40 ° سانتی گراد
8-pin EPS: 2 pcs
15-pin SATA: 16 pcs
4-pin Molex: 6 pcs
FDD: 2 PCS
Protection: Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection
Active PFC: Yes
Noise level: 0dBA ~ 36dBA
LED color: No
