SilverStone

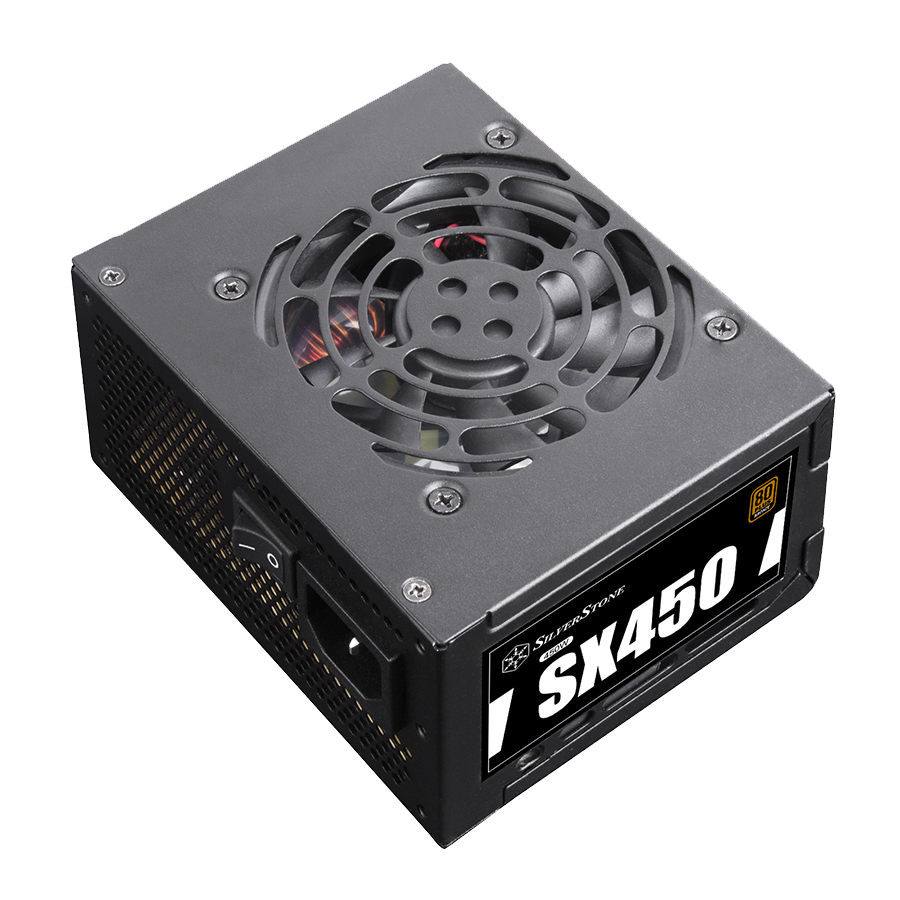

SilverStone SX450-B
Small in size, Big on power ￭ Support standard SFX form factor ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Silent running 80 mm fan with 18dBA minimum ￭ High efficiency with 80 PLUS Bronze certification ￭ Class-leading single +12V rail ￭ PCIe 8pin and PCIe 6pin connectors support
Product image gallery
About this product
Details & use
Small in size, Big on power ￭ Support standard SFX form factor ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Silent running 80 mm fan with 18dBA minimum ￭ High efficiency with 80 PLUS Bronze certification ￭ Class-leading single +12V rail ￭ PCIe 8pin and PCIe 6pin connectors support
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Performance & Compatibility
- Input Frequency Range
- 47 تا 63 هرتز
Design & Dimensions

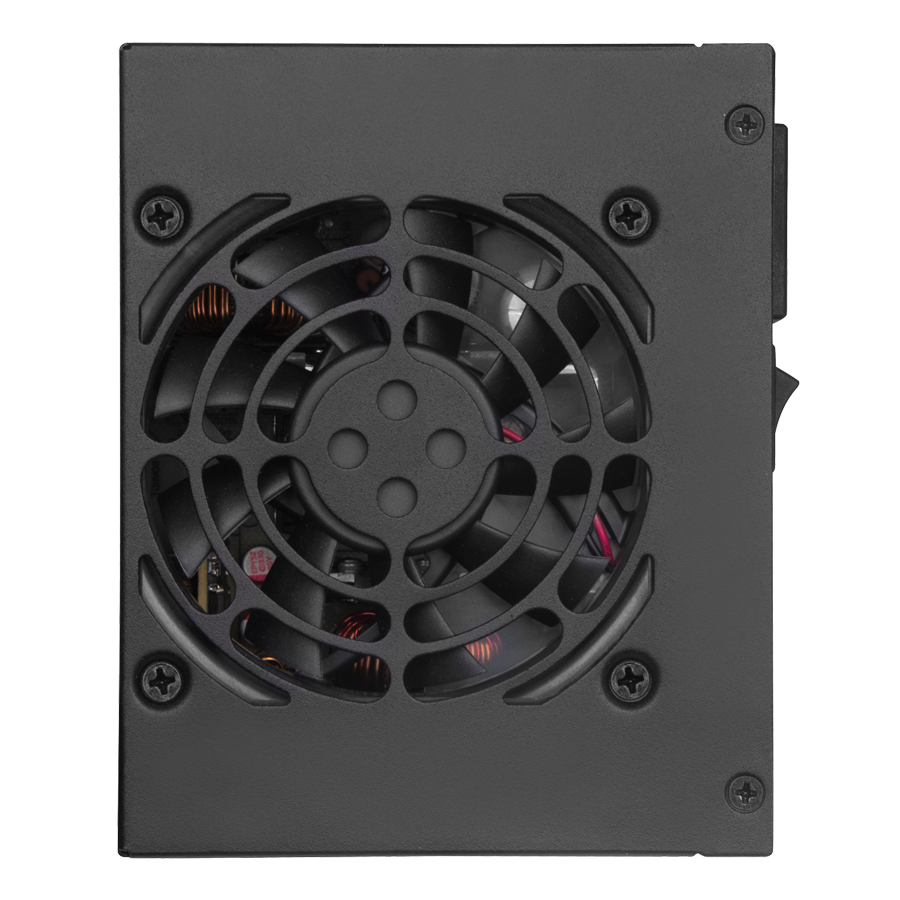

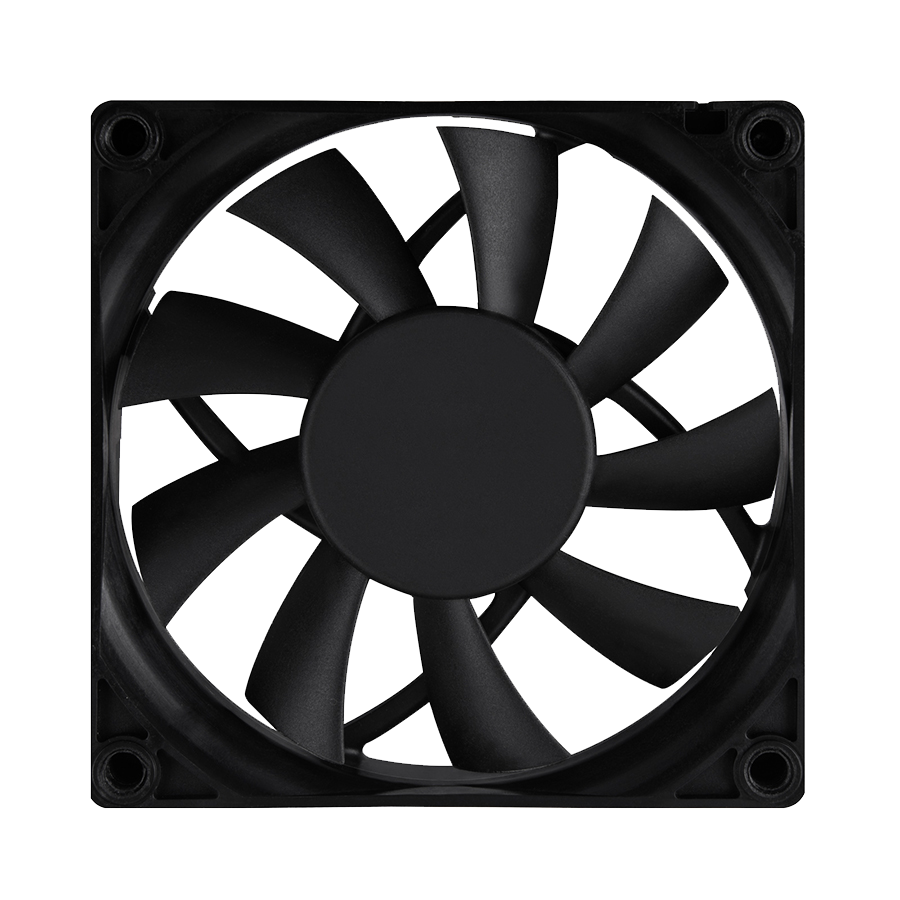

- Cooling system
- Single 80mm silent fan
- Dimensions
- 100×63.5×125 mm
- Weight
- 0.91 kg
- Form factor
- SFX
Other specs
- Cabling
- connectivity دائم
- 12V
- 0.3 آمپر
- Combined 12V
- 37.5 آمپر
- Color
- Black (lead-free paint)
- 15-pin SATA
- 3 pcs
- Efficiency
- 82% ~ 85% at 20% ~ 100% loading
- 8-pin PCIe
- 2 pcs
- Operating temperature
- 0 تا 40 ° سانتی گراد
- 3.3V
- 20 آمپر
- Wattage
- 450 W
- Input voltage
- 90 ~ 265 Vrms
- 5V
- 20 آمپر
- 24-pin connector
- 1 pcs
- MTBF
- 100,000 hours
- 8-pin EPS
- 1 pcs
- 4-pin Molex
- 2 pcs
- FDD
- 1 PCS
- Protection
- Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection
- Active PFC
- Yes
- Certification
- 80 PLUS Bronze
- Noise level
- 18 dBA minimum
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Cooling system: Single 80mm silent fan
Cabling: connectivity دائم
12V: 0.3 آمپر
Dimensions: 125 mm (W) x 63.5 mm (H) x 100 mm (D) 4.92" (W) x 2.5" (H) x 3.94" (D)
