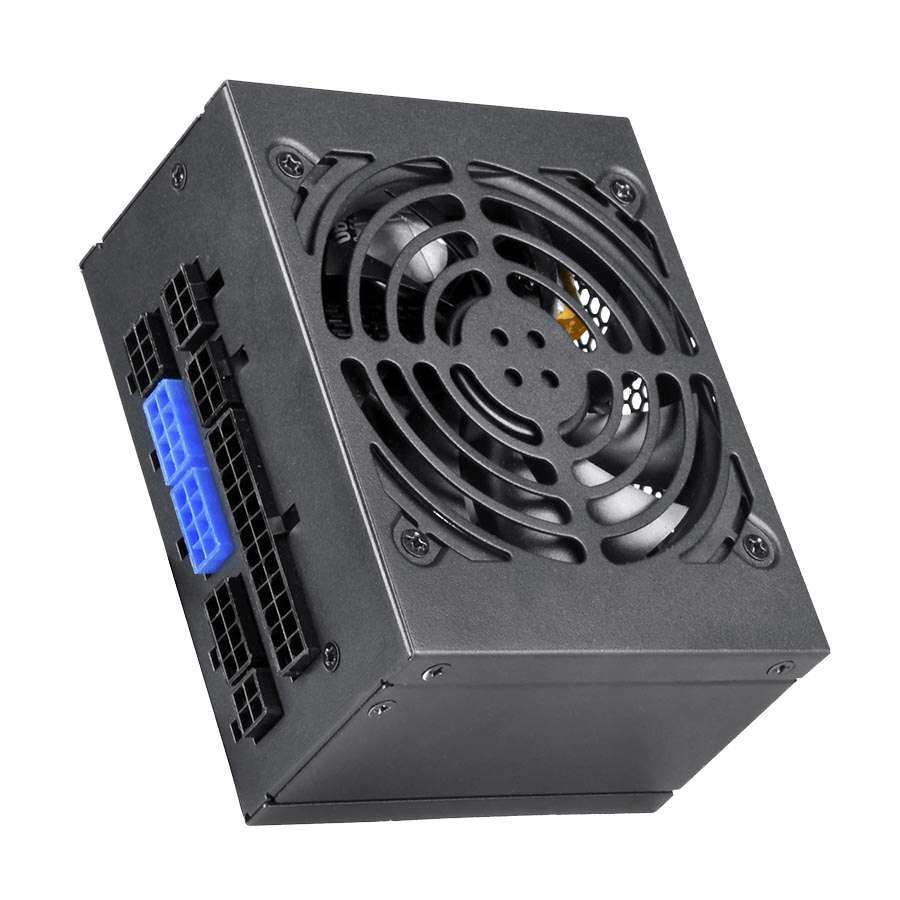

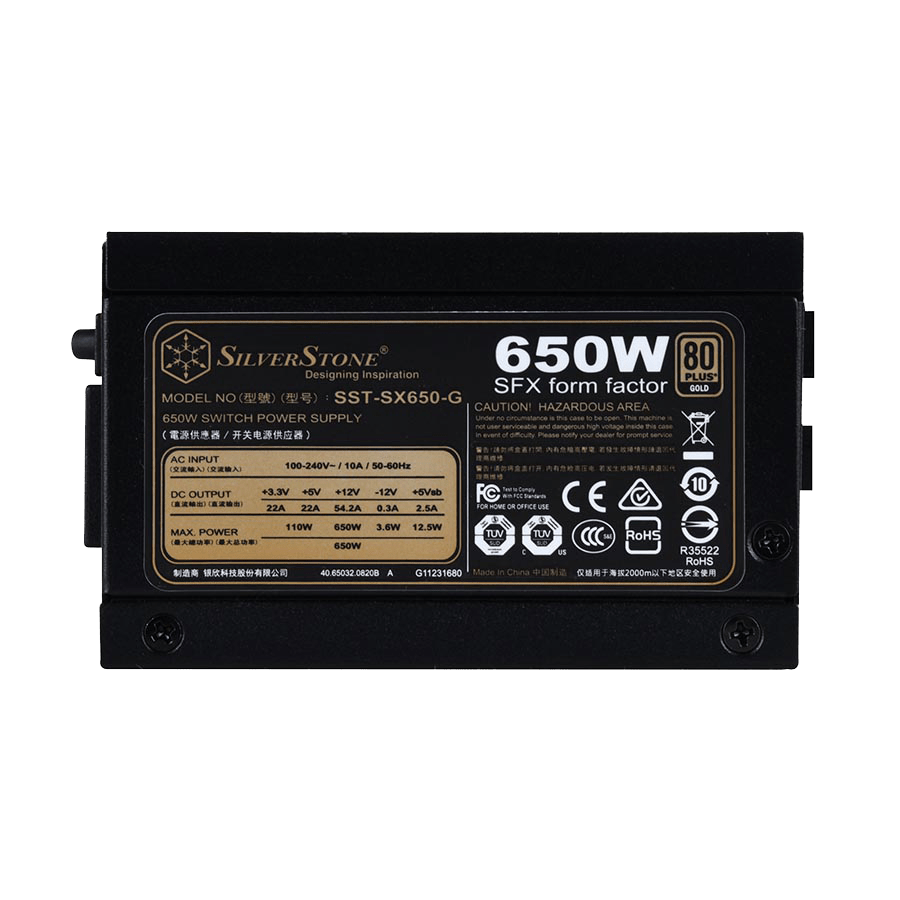

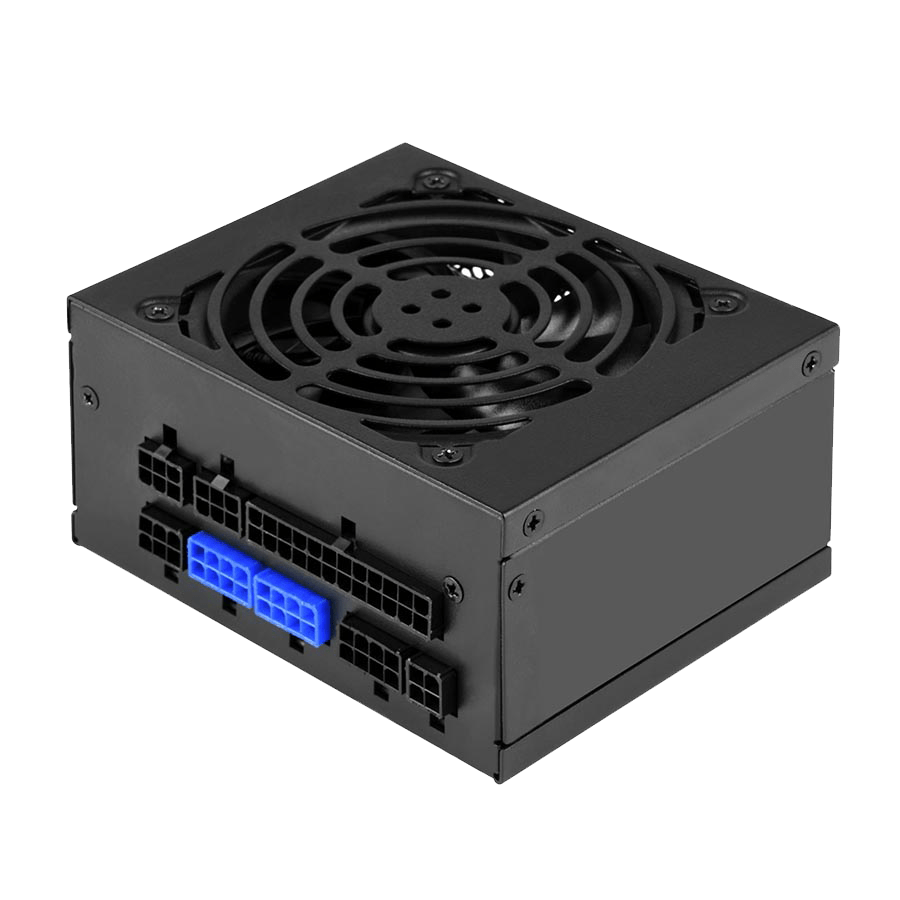

SilverStone SX650-G

￭ Support standard SFX form factor ￭ Silent running 92mm FDB fan with 18 dBA minimum ￭ All Japanese capacitors ￭ High efficiency with 80 PLUS Gold certification ￭ Class-leading single +12V rail ￭ Strict ±3% voltage regulation and low ripple & noise ￭ 100% modular cables ￭ All cables made with flexible flat arrays ￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.1)

Power SupplySilverStoneOfficial Taba warranty

← Prev Next →

About this product

Details & use

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

Photo 1/8

Specifications

Technical specs

Performance & Compatibility

Input Frequency Range: 47 تا 63 هرتز

Design & Dimensions

Dimensions: 100×63.5×125 mm
Weight: 1.36 kg
Form factor: SFX

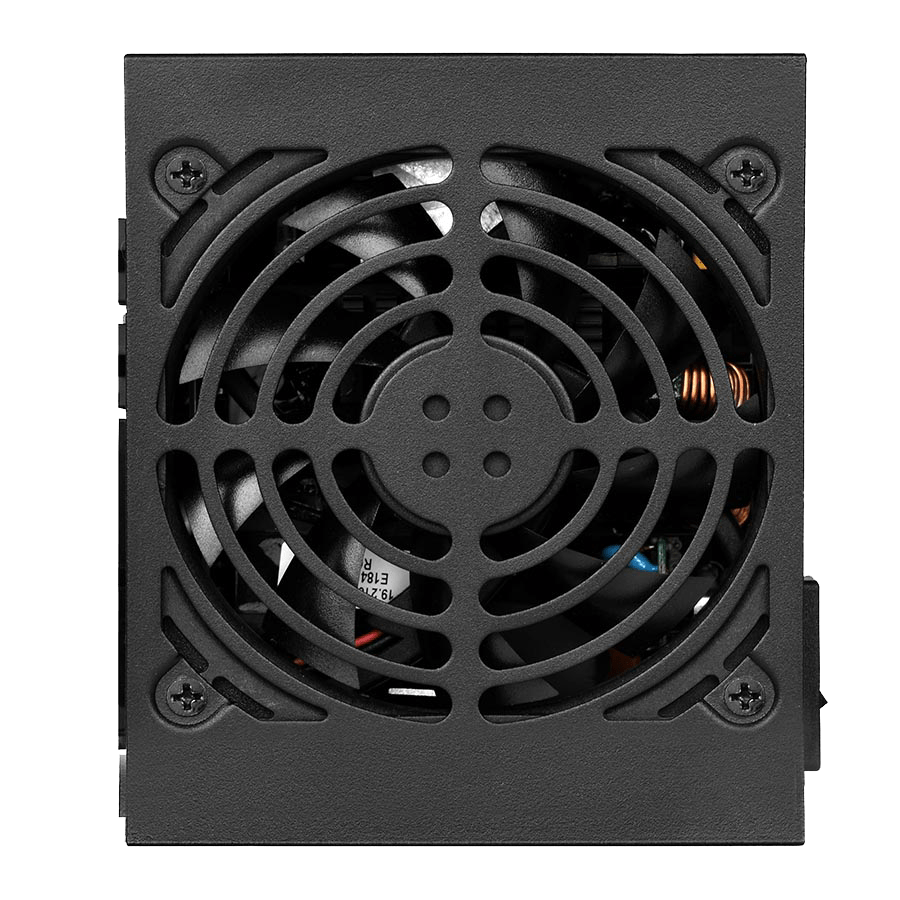

Cooling system: Single 92mm FDB fan

Other specs

MTBF: 100,000 hours
Combined 12V: 54.2 آمپر
12V: 0.3 آمپر
Color: Black (lead-free paint)
12-pin PCIe: No
Certification: 80 PLUS Gold
8-pin PCIe: 4 pcs
Efficiency: 87% ~ 90% (at 20% ~ 100% loading)
3.3V: 22 آمپر
Cabling: فول ماژولار
Wattage: 650 W
Input voltage: 90 تا 264 V
5V: 22 آمپر
24-pin connector: 1 pcs
Operating temperature: 0 تا 40 ° سانتی گراد
8-pin EPS: 1 pcs
15-pin SATA: 6 pcs
4-pin Molex: 3 pcs
FDD: 1 PCS
Protection: Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection
Active PFC: Yes
Noise level: 18 dBA minimum
LED color: No
