ASUS
ASUS Motherboard PRIME H610M-A D4
ASUS PRIME H610M-A D4 MOTHERBOARD 12th gen Intel chipset H610 supports socket LGA-1700 supports PCI Express 4.0 supports SSD M.2 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS PRIME H610M-A D4 MOTHERBOARD 12th gen Intel chipset H610 supports socket LGA-1700 supports PCI Express 4.0 supports SSD M.2 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

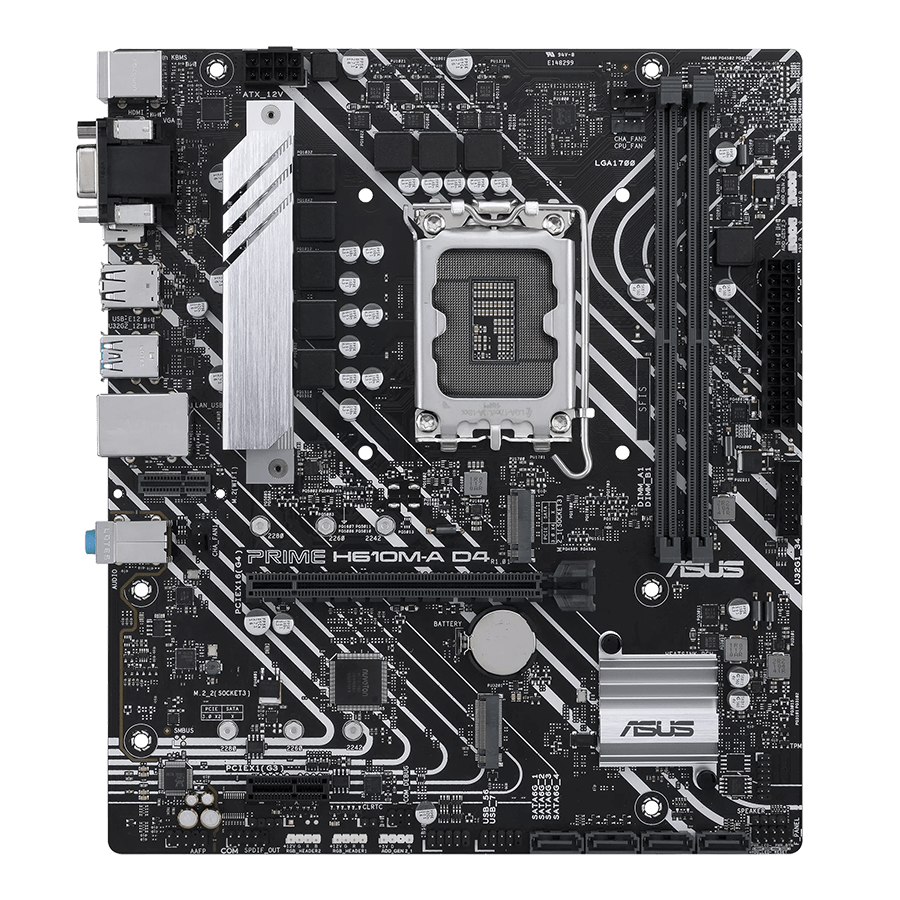

Photo 1/5
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Form factor
- m-ATX
- Clear CMOS
- Yes
- BIOS
- 128MB Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Chipset
- Intel H610
- Series
- Prime
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 12th gen, 13th gen
- CPU power connector
- یک pcs 8 پین
Memory
- RAM slots
- 2 PCS
- RAM capacity
- 64 GB
- Memory type
- DDR4
- Memory
- up to 3200 MHz
Expansion Slots
- PCIe x1
- PCIe 3.0, 1 PCS
- PCIe x16
- یک slot PCIe 4.0 x16
- PCIe x4
- No
Storage
- M.2
- دو pcs PCIe 3.0
- SATA III
- 4 pcs
I/O & Connectivity
- USB 2.0
- 4 pcs
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 2 PCS
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- No
- LAN
- Intel 1Gb Ethernet port
- Wi-Fi
- No
- Bluetooth
- No
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- No
Power
- Power switch
- No
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- No
- Intel Optane
- No
- D-Sub
- Yes
- LED color
- No
- DVI
- No
- 3.5 mm jack
- 3 pcs
- Debug display
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
RAM slots: 2 PCS
Form factor: m-ATX
CPU socket: LGA-1700
