ASUS Motherboard PRIME Z690-P D4
ASUS PRIME Z690-P D4 MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports SSD type M.2 supports PCI Express 5.0 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS PRIME Z690-P D4 MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports SSD type M.2 supports PCI Express 5.0 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/7
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel Z690
- Form factor
- ATX
- Clear CMOS
- No
- BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- Prime
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 12th gen, 13th gen
- CPU power circuit
- 14+1 فاز
- CPU power connector
- یک pcs 4 پین, یک pcs 8 پین
Memory
- RAM slots
- 4 pcs
- Memory type
- DDR4
- RAM capacity
- 128 GB
- Memory
- up to 5333 MHz
Expansion Slots
- PCIe x16
- یک slot PCIe 3.0 x16, یک slot PCIe 4.0 x16, یک slot PCIe 5.0 x16
- PCIe x4
- No
- PCIe x1
- 1 PCS, PCIe 3.0
Storage
- M.2
- سه pcs PCIe 4.0
- SATA III
- 4 pcs
- RAID
- RAID 0/1/5/10

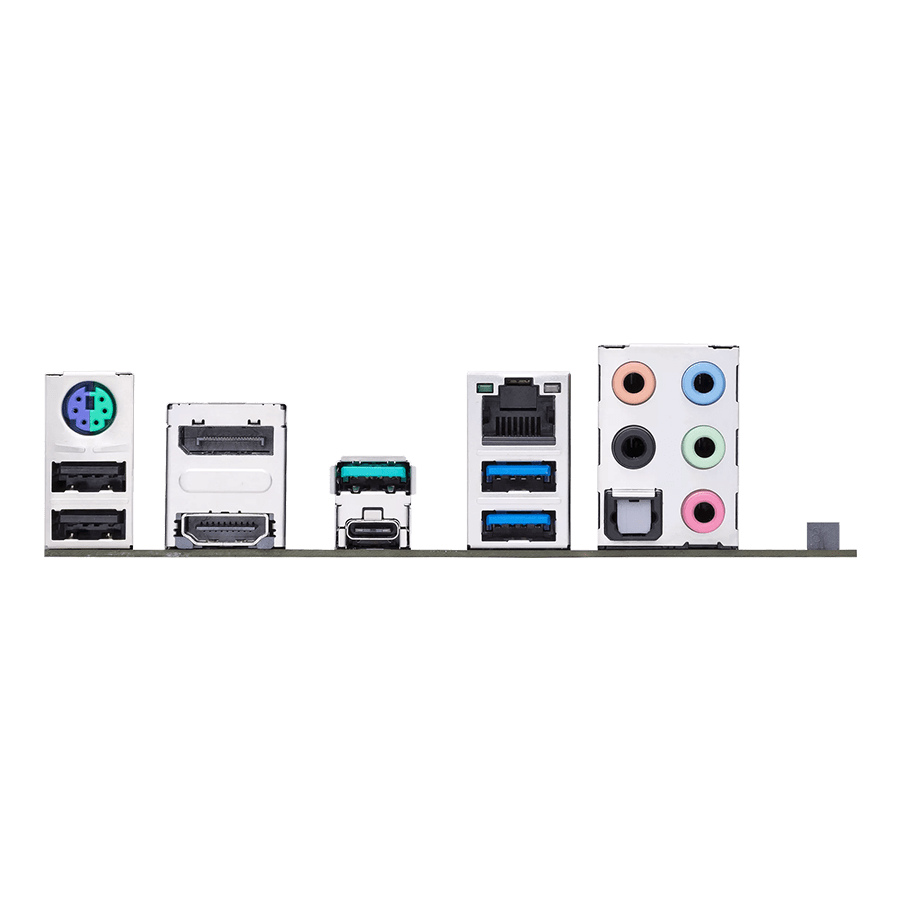

I/O & Connectivity
- USB 2.0
- 2 PCS
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 4 pcs
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- LAN
- Realtek 2.5Gb Ethernet
- Bluetooth
- No
- Wi-Fi
- No
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- No
Other specs
- Configure
- دو کاناله
- PCI
- No
- Intel Optane
- Yes
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 5 pcs
- Debug display
- No
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
Chipset: Intel Z690
Form factor: ATX
CPU socket: LGA-1700
