ASUS Motherboard ROG MAXIMUS Z790 EXTREME

ASUS ROG MAXIMUS Z790 EXTREME MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 6E with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

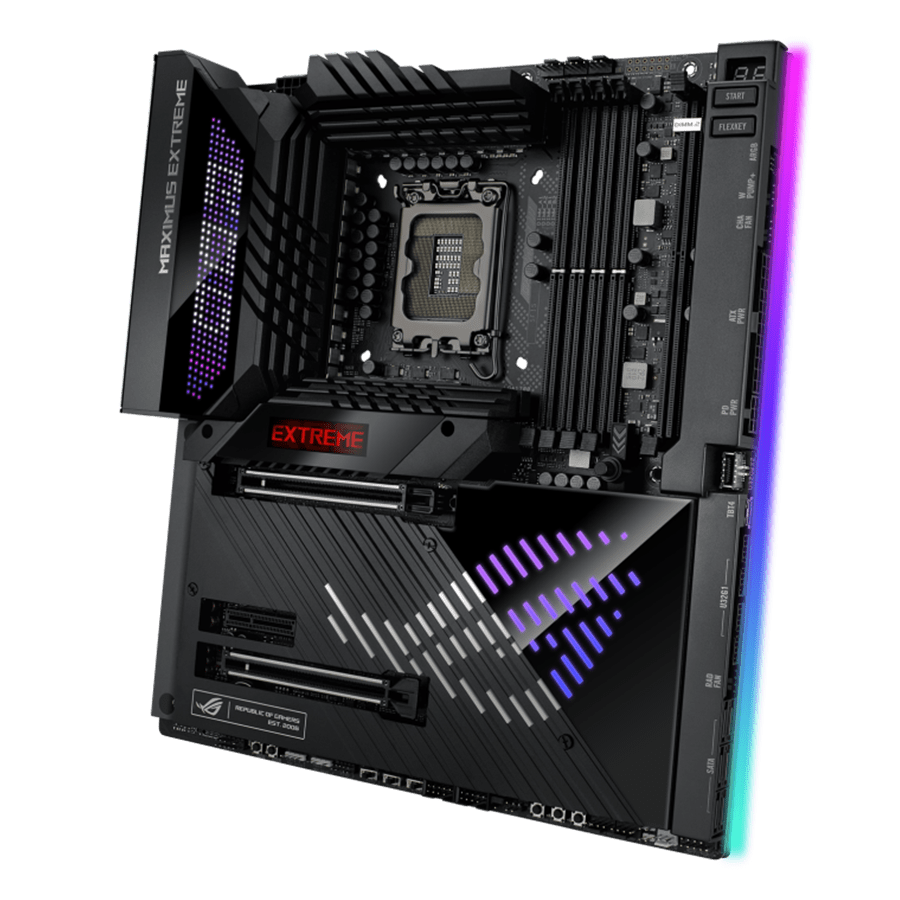

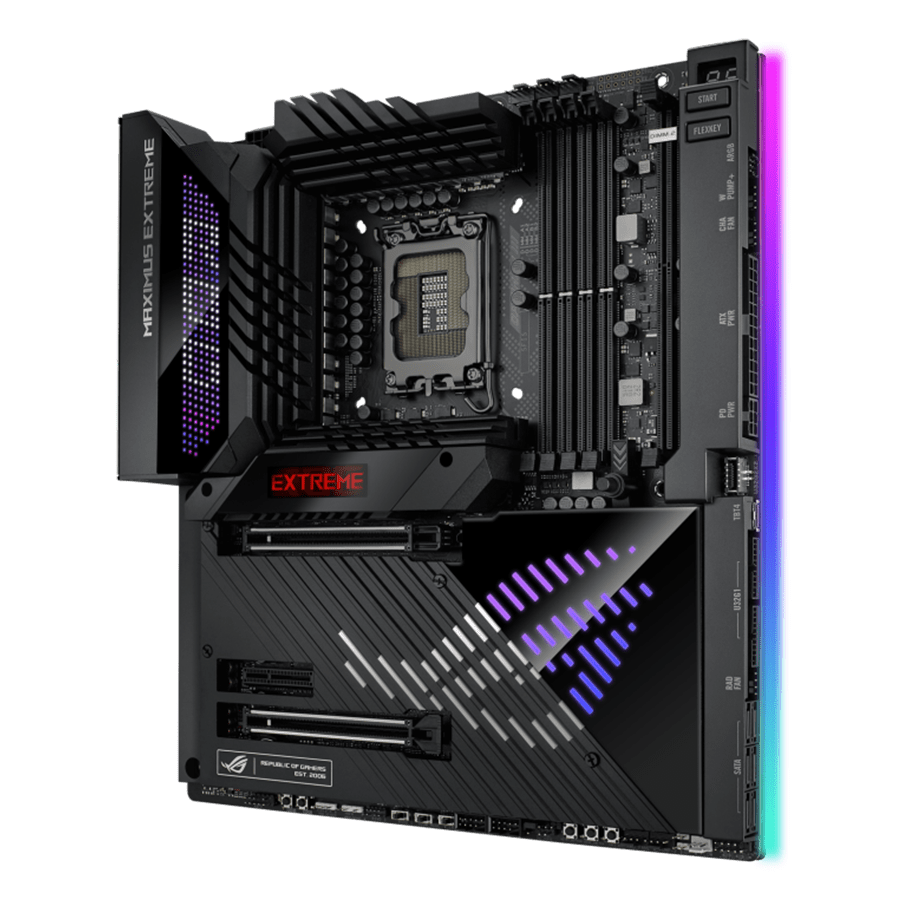

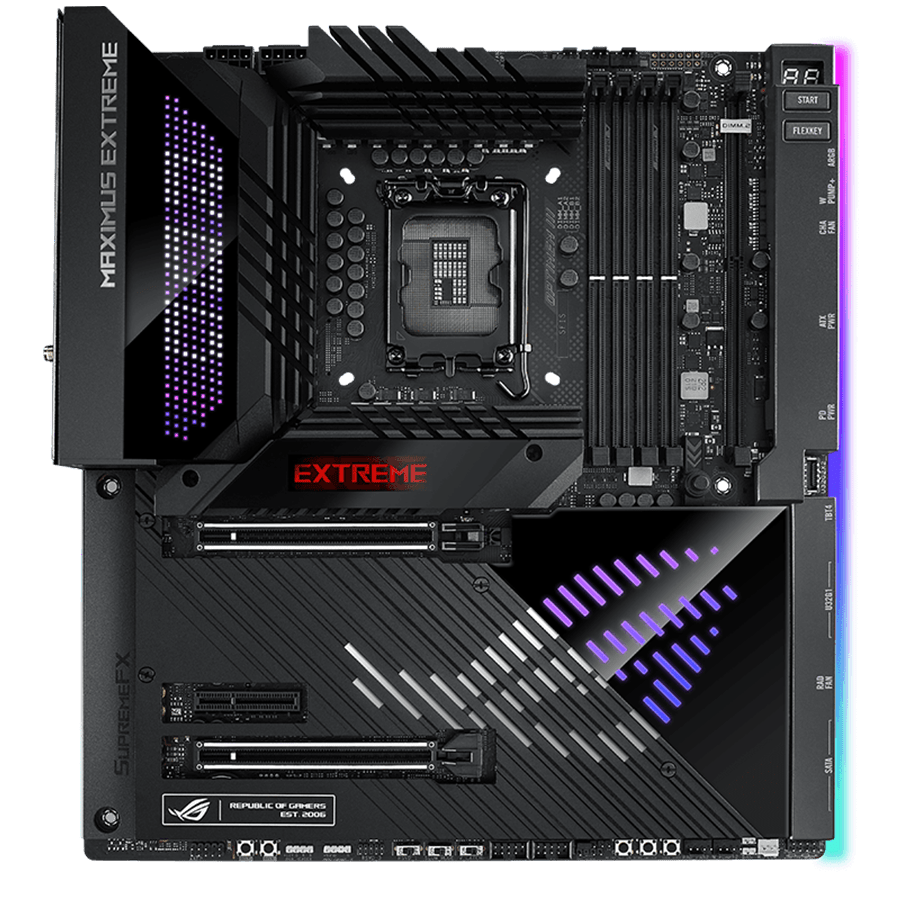

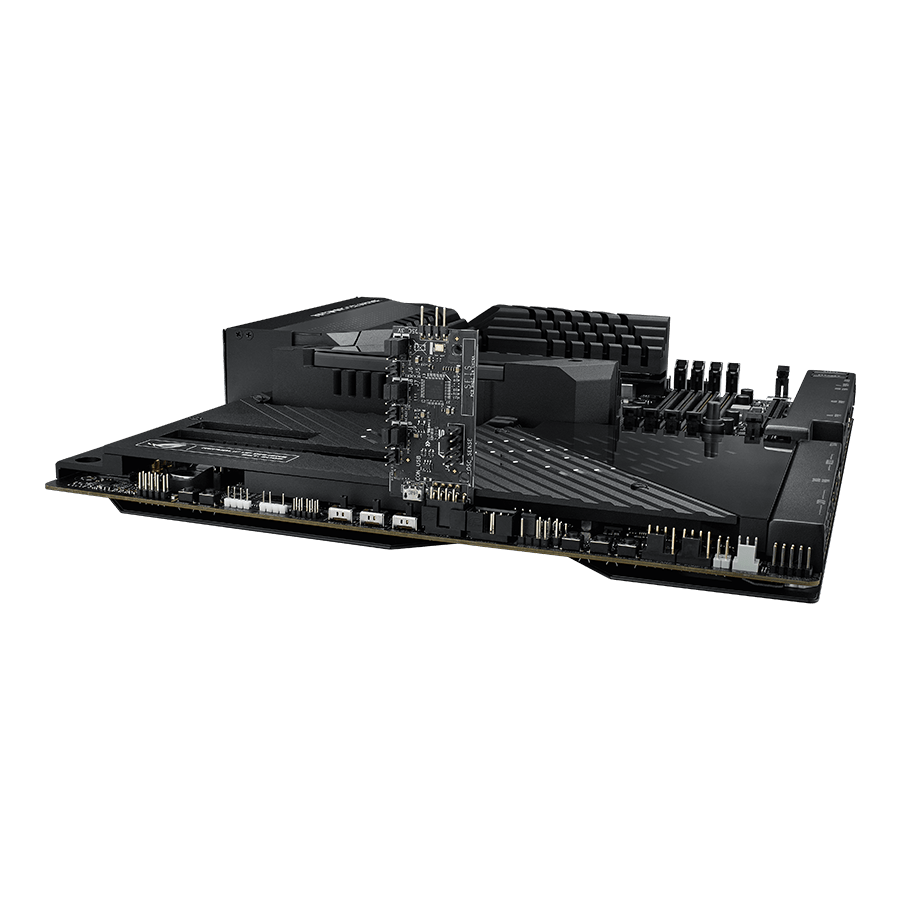

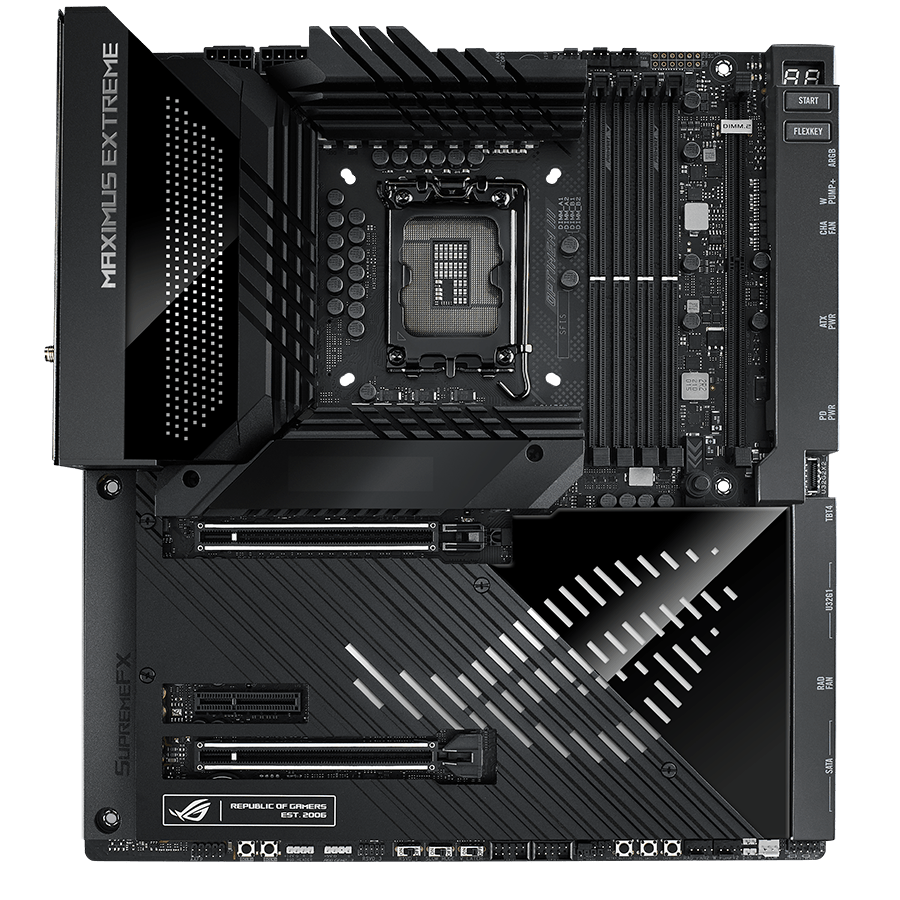

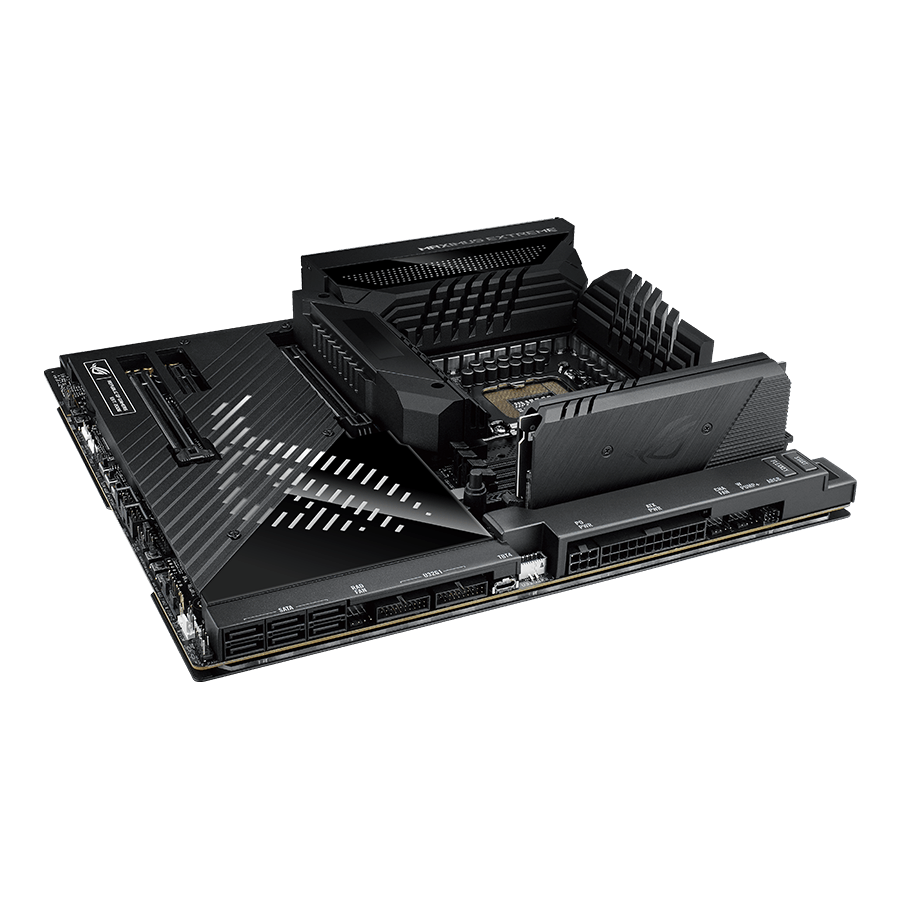

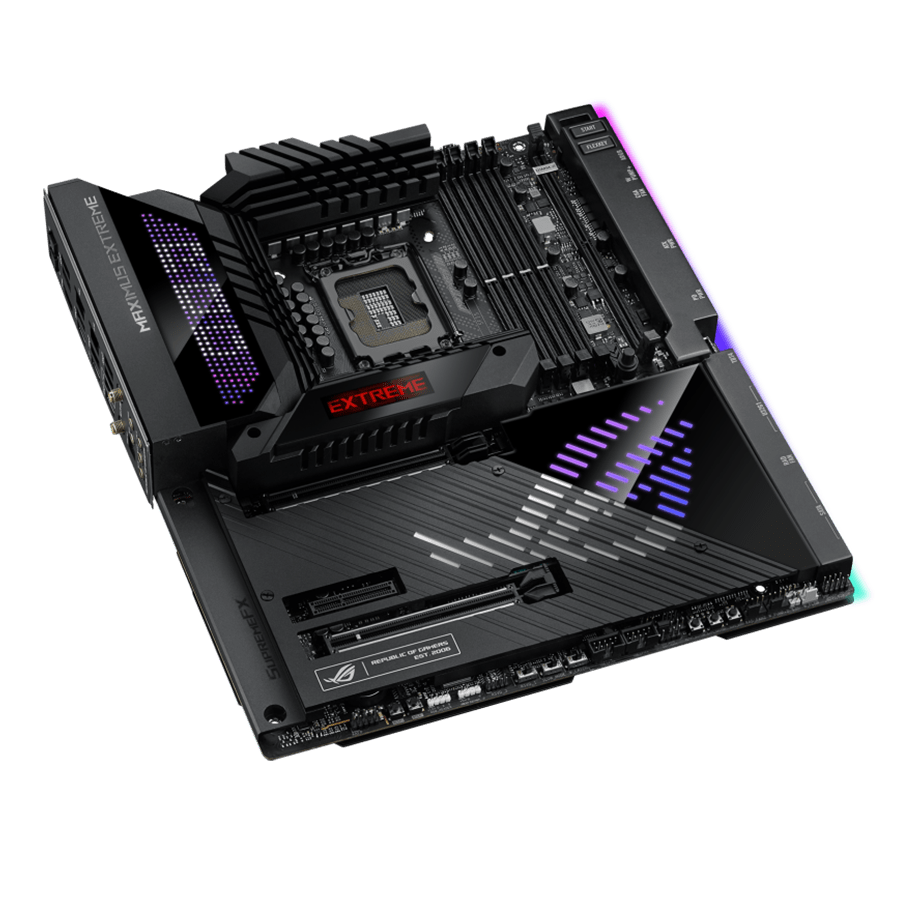

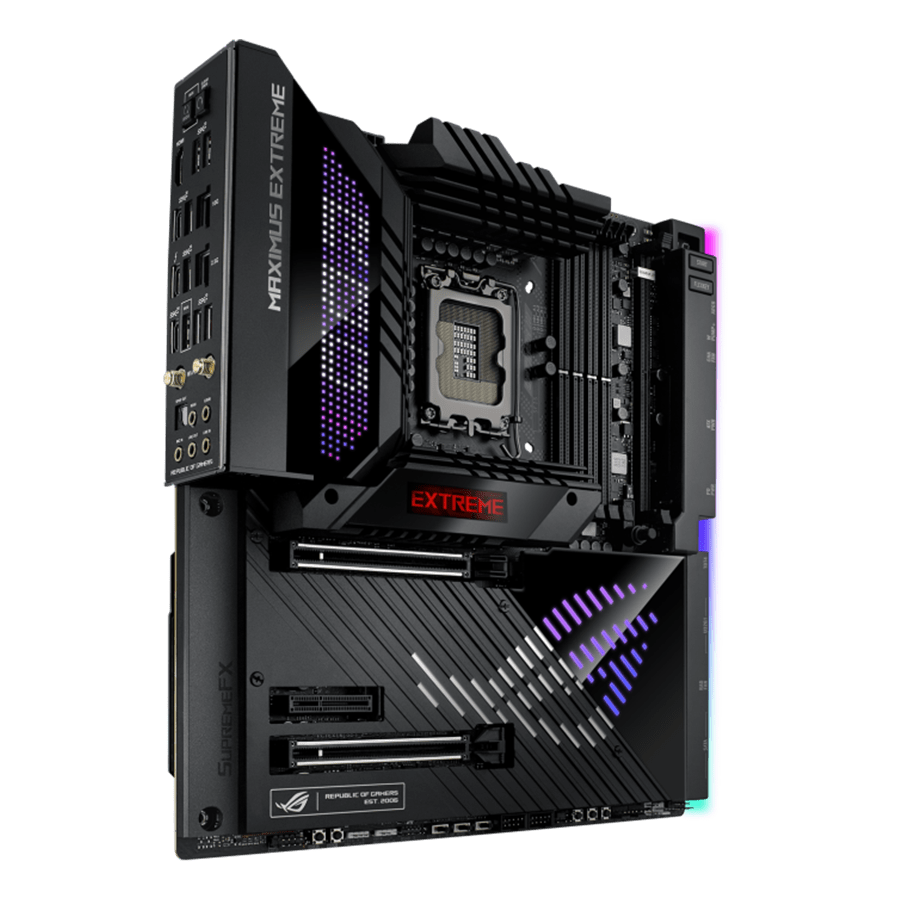

ASUS Motherboard ROG MAXIMUS Z790 EXTREME — Main view

Photo 1/8

Specifications

Technical specs

Motherboard

Platform: Intel
Form factor: E-ATX
Clear CMOS: Yes
BIOS: 2x 256MB Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Chipset: Intel Z790
Series: ROG MAXIMUS

Processor

CPU generation: 13th gen, 12th gen
CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU power circuit: 24+1 فاز
CPU power connector: دو pcs کانکتور 8 پین

Memory

RAM slots: 4 pcs
Memory type: DDR5
RAM capacity: 128 GB
Memory: up to 7800 MHz

Expansion Slots

PCIe x4: 1 PCS, PCIe 4.0
PCIe x16: دو slot PCIe 5.0 x16
PCIe x1: No

Storage

M.2: چهار pcs PCIe 4.0, یک pcs PCIe 5.0
SATA III: 6 pcs
RAID: RAID 0/1/5/10

I/O & Connectivity

Bluetooth: نسخه 5.3
USB 2.0: 2 PCS
USB 3.0: No
USB 3.1: No
USB 3.2: 10 pcs
HDMI: Yes
DisplayPort: No
Thunderbolt: 1 pcs مشترک با USB Type-C
LAN: Intel 2.5Gb Ethernet port, Marvell 10Gb Ethernet port
Wi-Fi: Intel Wi-Fi 6E
Communication protocols: 802.11a/b/g/n/ac/ax, supports frequency 2.4/5/6 گیگاهرتز
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio channels: 7.1 کانال
Digital audio: OPTICAL S/PDIF

Power

Power switch: Yes

Other specs

Configure: دو کاناله
Intel Optane: No
PCI: No
Multi-GPU support: Supports AMD 2-Way CrossFireX Technology, Supports NVIDIA® 2-Way SLI® Technology
D-Sub: No
DVI: No
3.5 mm jack: 5 pcs
Debug display: Yes
LED color: ARGB
