ASUS Motherboard ROG MAXIMUS Z890 EXTREME

ASUS ROG MAXIMUS Z890 EXTREME MOTHERBOARD chipset نسل پانزدهم Intel Z890 supports socket LGA-1851 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 7 with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

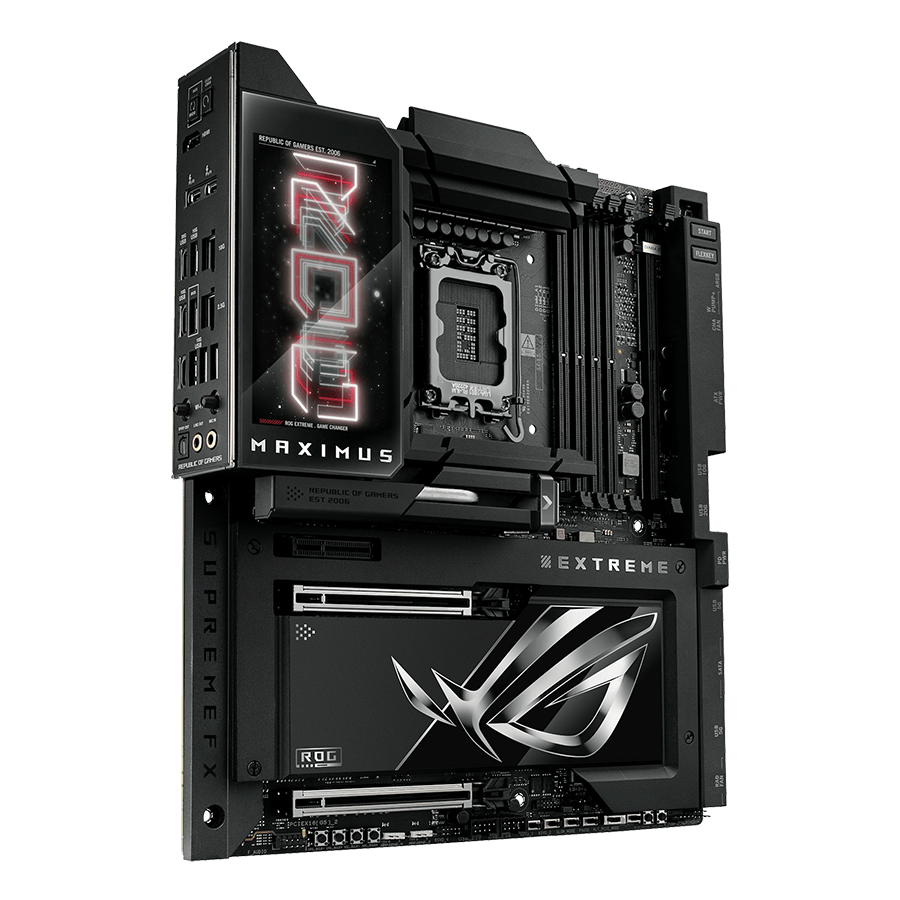

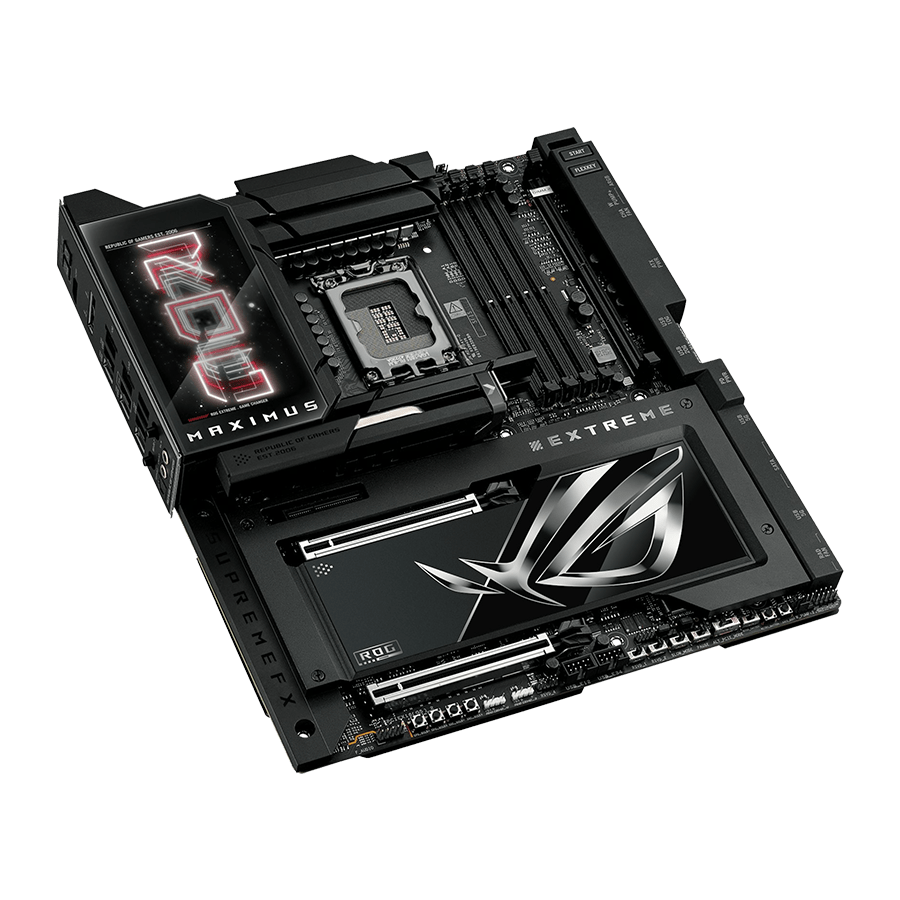

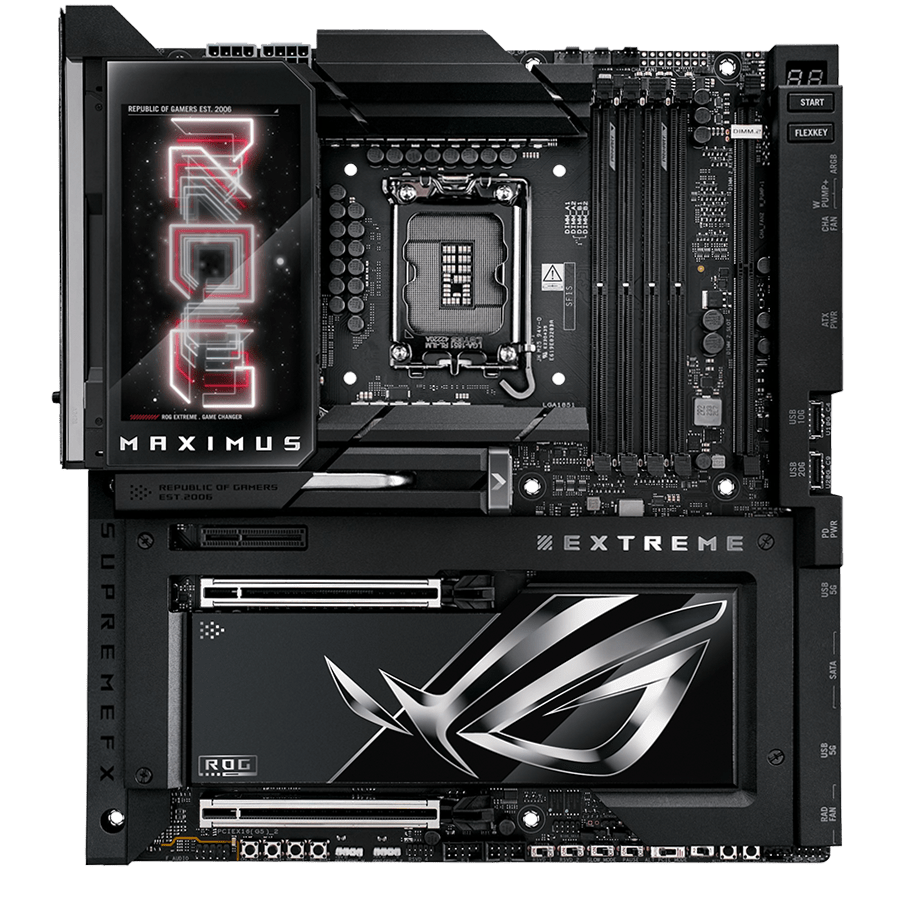

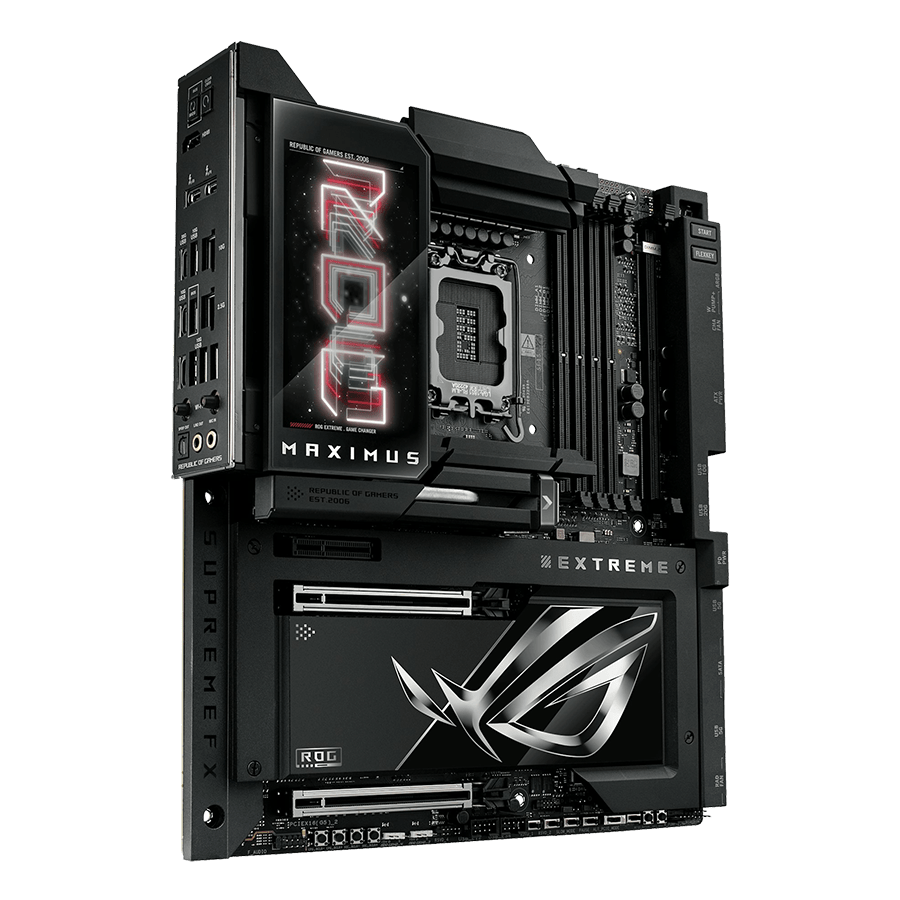

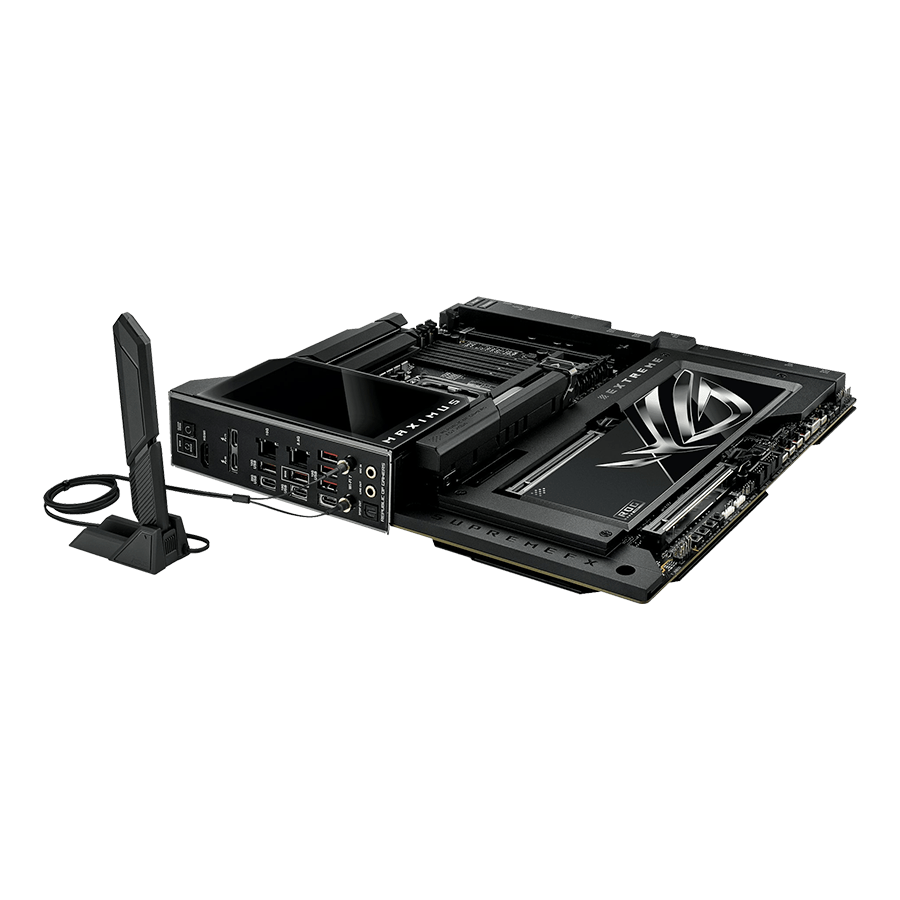

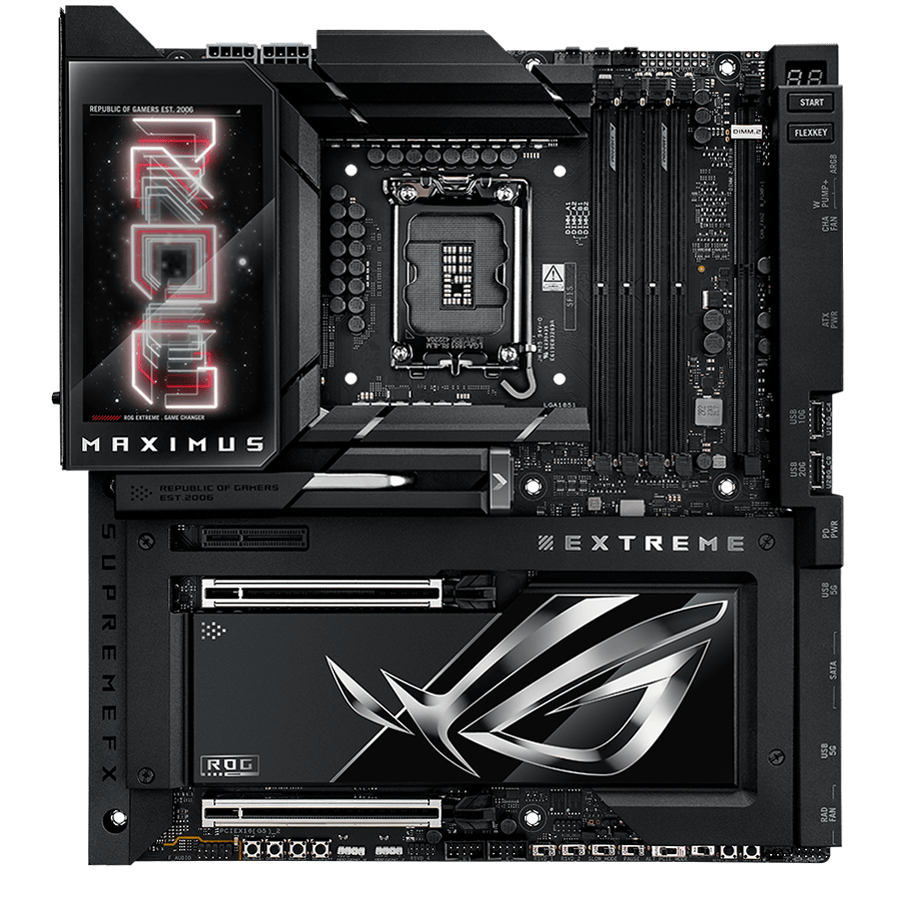

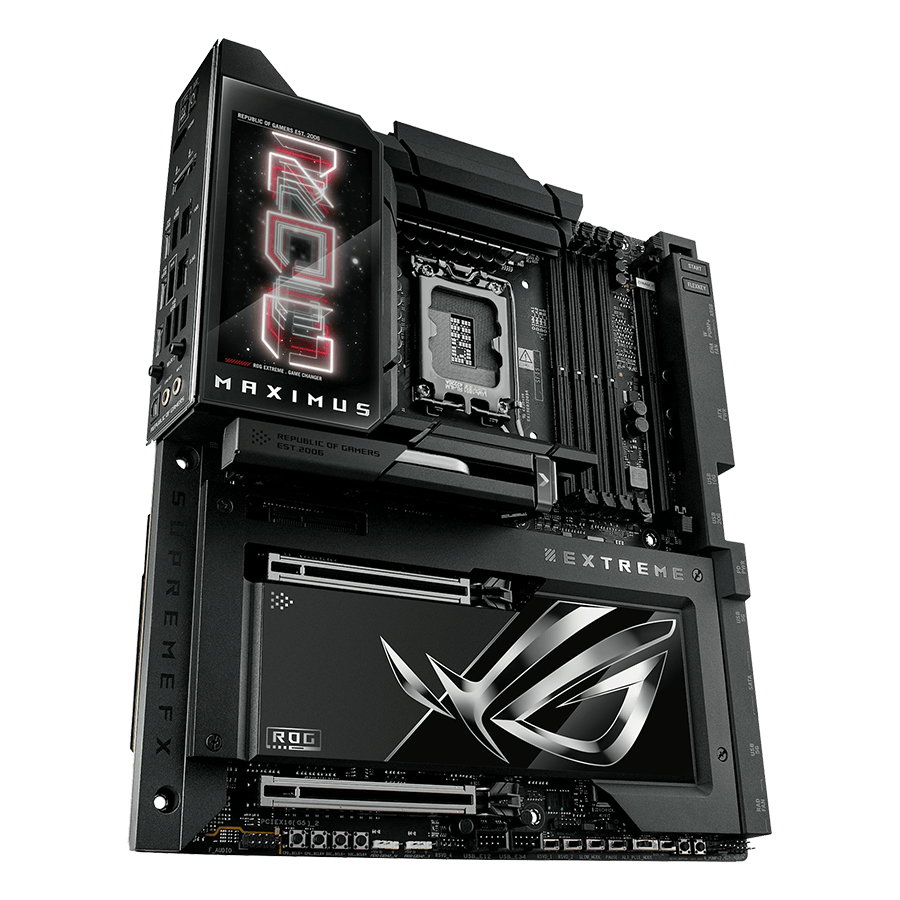

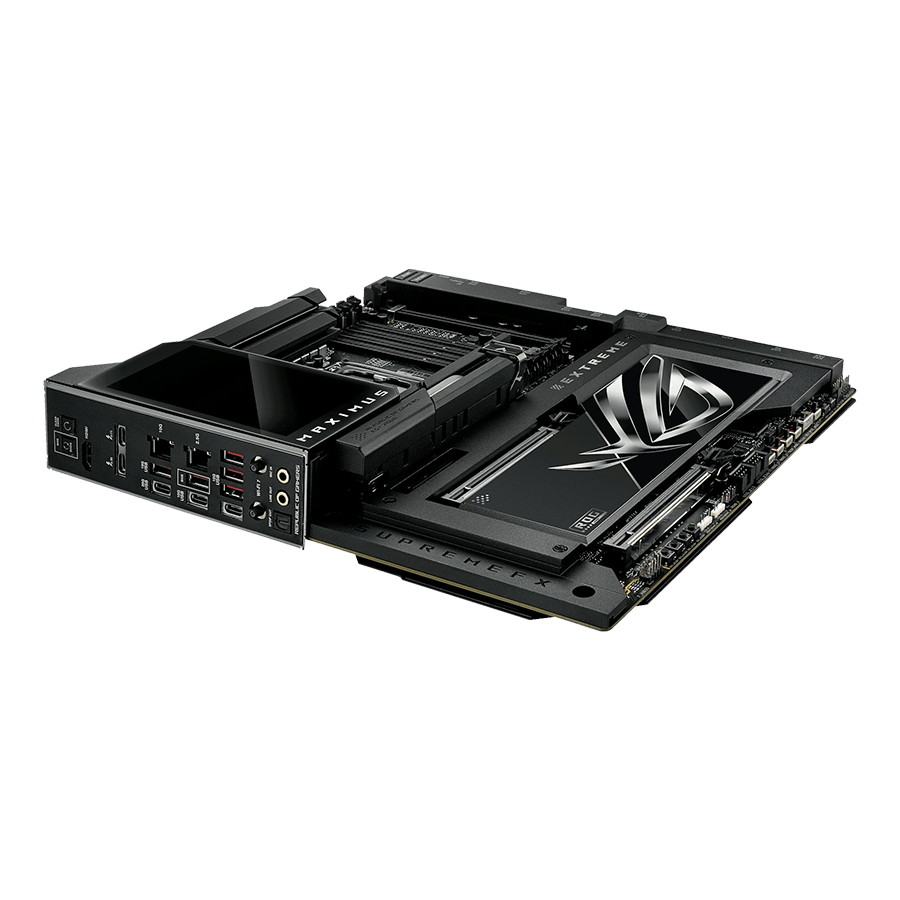

ASUS Motherboard ROG MAXIMUS Z890 EXTREME — Main view

Photo 1/8

Specifications

Technical specs

Motherboard

Platform: Intel
Chipset: Intel Z890
Series: ROG MAXIMUS
BIOS: 2x 256MB Flash ROM, UEFI AMI BIOS
Clear CMOS: Yes
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Form factor: E-ATX

Processor

CPU generation: نسل پانزدهم
CPU socket: LGA-1851
Socket: Intel Core Ultra Processors (Series 2)
CPU power circuit: 24+2+1+2 فاز
CPU power connector: دو pcs کانکتور 8 پین

Memory

RAM capacity: 256 GB
RAM slots: 4 pcs
Memory type: DDR5
Memory: up to 9200 MHz

Expansion Slots

PCIe x16: دو slot PCIe 5.0 x16
PCIe x4: 1 PCS
PCIe x1: No

Storage

M.2: سه slot PCIe 4.0 x16, سه slot PCIe 5.0 x16
SATA III: 4 pcs
RAID: RAID 0/1/5/10

I/O & Connectivity

LAN: Intel 2.5Gb Ethernet port, Marvell 10Gb Ethernet port
USB 3.2: 10 pcs
USB 2.0: 2 PCS
USB 3.0: No
USB 3.1: No
HDMI: Yes
DisplayPort: No
Thunderbolt: 2 pcs مشترک با USB Type-C
Wi-Fi: Intel Wi-Fi 7
Communication protocols: supports frequency 2.4/5/6 گیگاهرتز, 802.11be
Bluetooth: نسحه 5.4
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio channels: 7.1 کانال
Digital audio: OPTICAL S/PDIF

Power

Power switch: Yes

Other specs

Configure: دو کاناله
PCI: No
Multi-GPU support: Supports AMD 2-Way CrossFireX Technology, Supports NVIDIA® 2-Way SLI® Technology
Intel Optane: No
D-Sub: No
DVI: No
3.5 mm jack: 2 PCS
Debug display: Yes
LED color: ARGB
