ASUS Motherboard ROG STRIX Z790-E GAMING WIFI II

ASUS ROG STRIX Z790-E GAMING WIFI II MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 7 with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

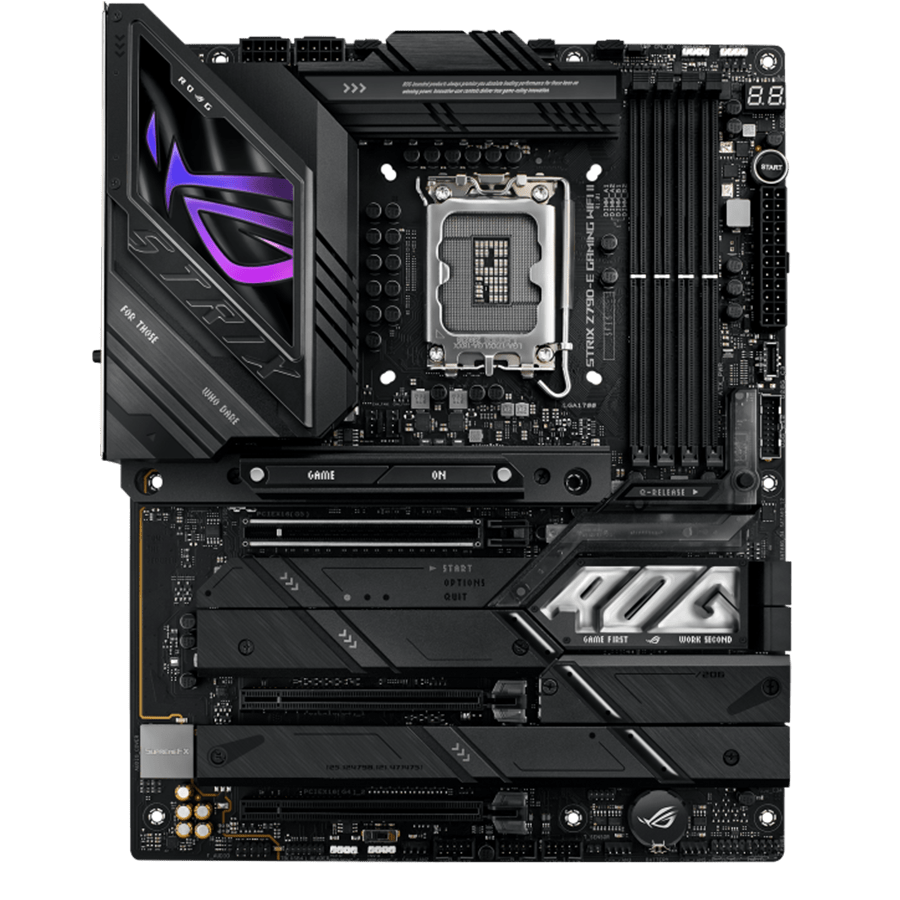

ASUS Motherboard ROG STRIX Z790-E GAMING WIFI II — Main view

Photo 1/8

Specifications

Technical specs

Motherboard

Platform: Intel
Chipset: Intel Z790
Form factor: ATX
Clear CMOS: Yes
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Series: ROG STRIX

Processor

CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU generation: 13th gen, 14th gen, 12th gen
CPU power connector: دو pcs کانکتور 8 پین
CPU power circuit: 18+1+2 فاز

Memory

RAM slots: 4 pcs
Memory type: DDR5
RAM capacity: 192 GB
Memory: up to 8000 MHz

Expansion Slots

PCIe x1: No
PCIe x16: یک slot PCIe 4.0 x16, یک slot PCIe 5.0 x16
PCIe x4: No

Storage

M.2: چهار pcs PCIe 4.0, یک pcs PCIe 5.0
SATA III: 4 pcs
RAID: RAID 0/1/5/10

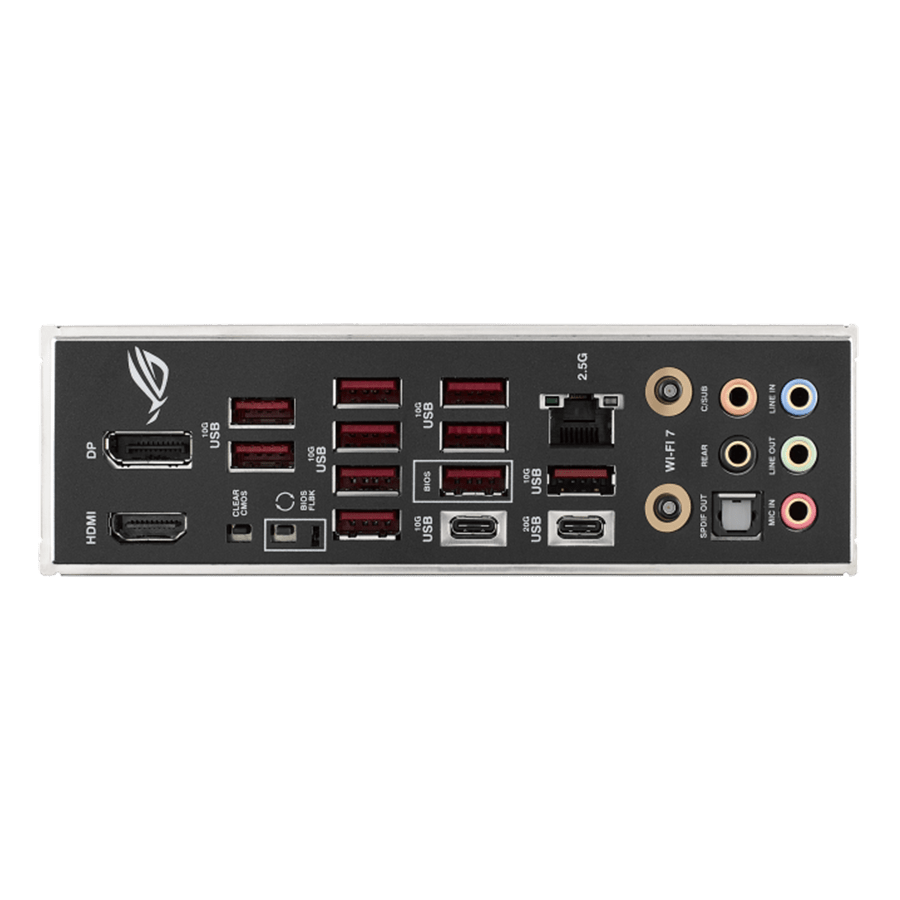

I/O & Connectivity

USB 3.2: 12 pcs
USB 3.1: No
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
HDMI: Yes
DisplayPort: Yes
Thunderbolt: به صورت کانکتور connectivity
LAN: Intel 2.5Gb Ethernet port
Wi-Fi: Intel Wi-Fi 7
Communication protocols: supports frequency 2.4/5/6 گیگاهرتز, 802.11be
Bluetooth: نسحه 5.4
Audio channels: 7.1 کانال
Digital audio: OPTICAL S/PDIF
