ASUS Motherboard ROG STRIX Z790-F GAMING WIFI II
ASUS ROG STRIX Z790-F GAMING WIFI II MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 7 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS ROG STRIX Z790-F GAMING WIFI II MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 7 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

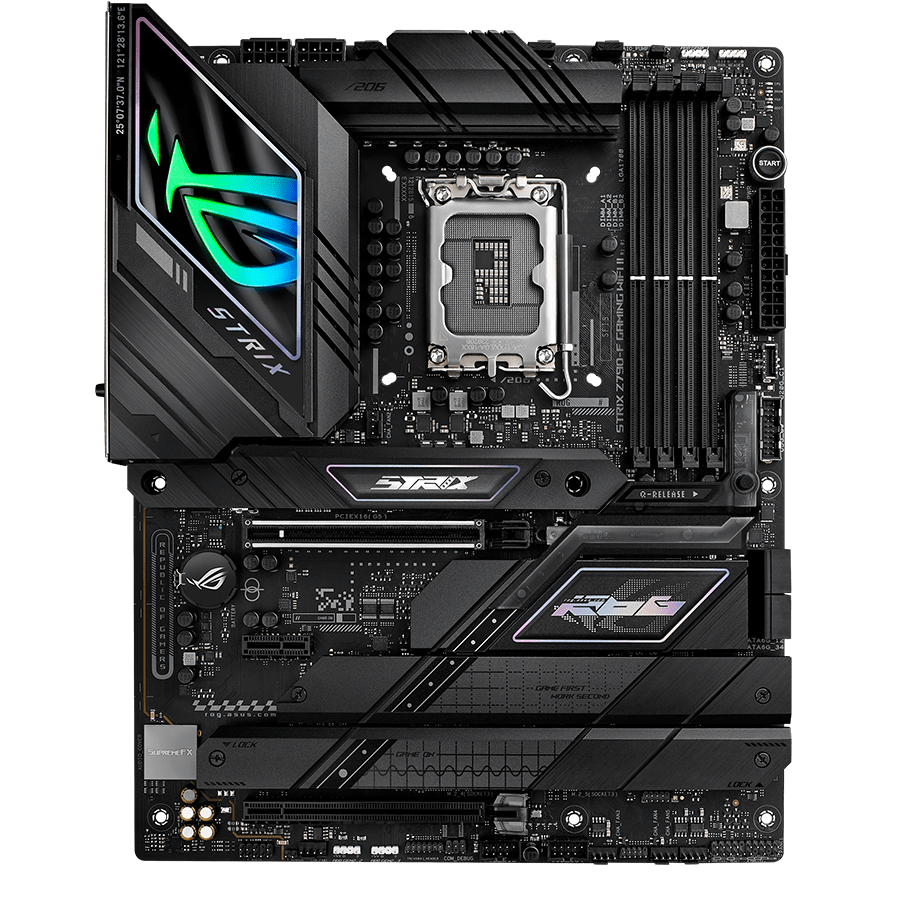

Photo 1/8
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel Z790
- Form factor
- ATX
- Clear CMOS
- Yes
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- ROG STRIX
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 13th gen, 12th gen, 14th gen
- CPU power connector
- دو pcs کانکتور 8 پین
- CPU power circuit
- 16+1+2 فاز
Memory
- RAM capacity
- 192 GB
- RAM slots
- 4 pcs
- Memory type
- DDR5
- Memory
- up to 8000 MHz
Expansion Slots
- PCIe x16
- یک slot PCIe 4.0 x16, یک slot PCIe 5.0 x16
- PCIe x4
- No
- PCIe x1
- 1 PCS, PCIe 3.0
Storage
- M.2
- پنج pcs PCI-e 4.0
- SATA III
- 6 pcs
- RAID
- RAID 0/1/5/10
I/O & Connectivity
- Wi-Fi
- Intel Wi-Fi 7
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 8 pcs
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- به صورت کانکتور connectivity
- LAN
- Intel 2.5Gb Ethernet port
- Communication protocols
- 802.11be, supports frequency 2.4/5/6 گیگاهرتز
- Bluetooth
- نسحه 5.4
- Audio
- ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080
- Audio channels
- 5.1 کانال
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- Yes
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- No
- Intel Optane
- No
- D-Sub
- No
- DVI
- No
- Debug display
- No
- LED color
- ARGB
- 3.5 mm jack
- 2 PCS
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
Chipset: Intel Z790
Form factor: ATX
CPU socket: LGA-1700
