ASUS Motherboard TUF GAMING B760-PLUS WIFI D4

ASUS TUF GAMING B760-PLUS WIFI D4 MOTHERBOARD 13th gen Intel chipset B760 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

ASUS TUF GAMING B760-PLUS WIFI D4 MOTHERBOARD 13th gen Intel chipset B760 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

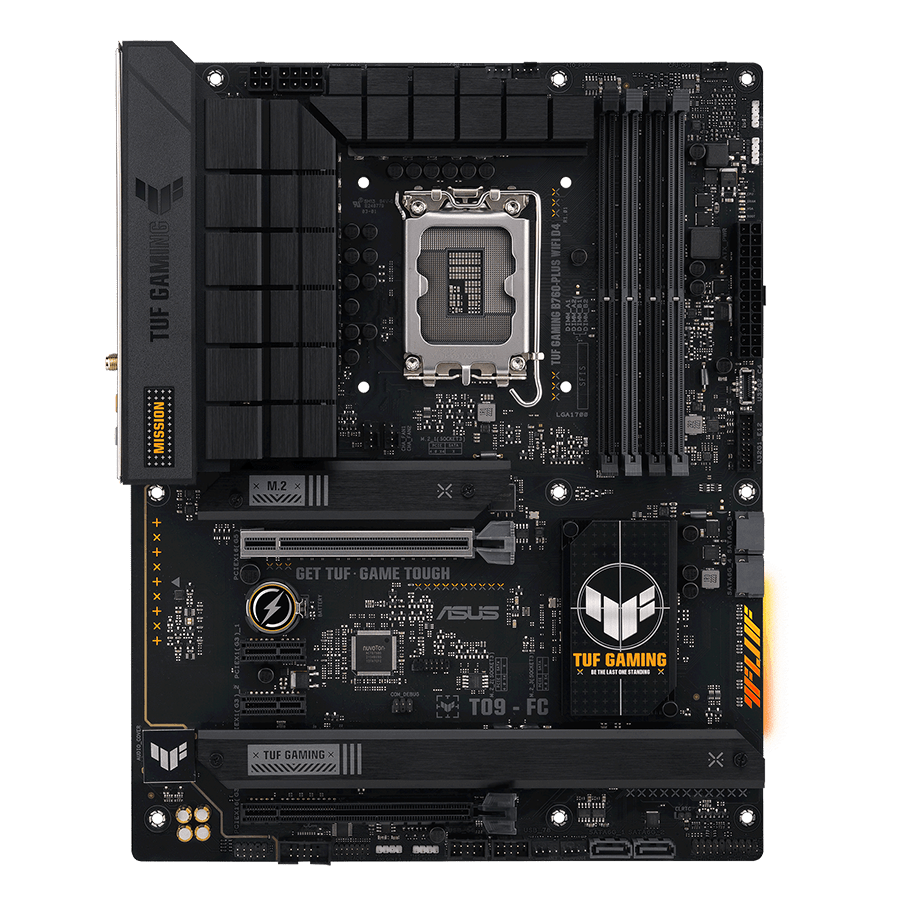

ASUS Motherboard TUF GAMING B760-PLUS WIFI D4 — Main view

Photo 1/7

Specifications

Technical specs

Motherboard

Platform: Intel
Form factor: ATX
Clear CMOS: Yes
BIOS: 128MB Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Chipset: Intel B760
Series: TUF Gaming

Processor

CPU generation: 13th gen, 12th gen
CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU power connector: یک pcs 4 پین, یک pcs 8 پین
CPU power circuit: 12+1 فاز

Memory

RAM slots: 4 pcs
Memory type: DDR4
RAM capacity: 128 GB
Memory: up to 5333 MHz

Expansion Slots

PCIe x16: یک slot PCIe 3.0 x16, یک slot PCIe 5.0 x16
PCIe x4: No
PCIe x1: 2 PCS, PCIe 3.0

Storage

M.2: سه pcs PCIe 4.0
SATA III: 4 pcs

I/O & Connectivity

LAN: Realtek 2.5Gb Ethernet
USB 2.0: 1 PCS
USB 3.0: No
USB 3.1: No
USB 3.2: 5 pcs
HDMI: Yes
DisplayPort: Yes
Thunderbolt: 1 PCS, به صورت کانکتور connectivity
Wi-Fi: Intel Wi-Fi 6
Communication protocols: 802.11a/b/g/n/ac/ax, supports frequency 2.4/5 گیگاهرتز
Bluetooth: نسخه 5.2
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio channels: 7.1 کانال
Digital audio: OPTICAL S/PDIF
