ASUS Motherboard PRIME Z690-P WIFI D4

ASUS PRIME Z690-P WIFI D4 MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

ASUS PRIME Z690-P WIFI D4 MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

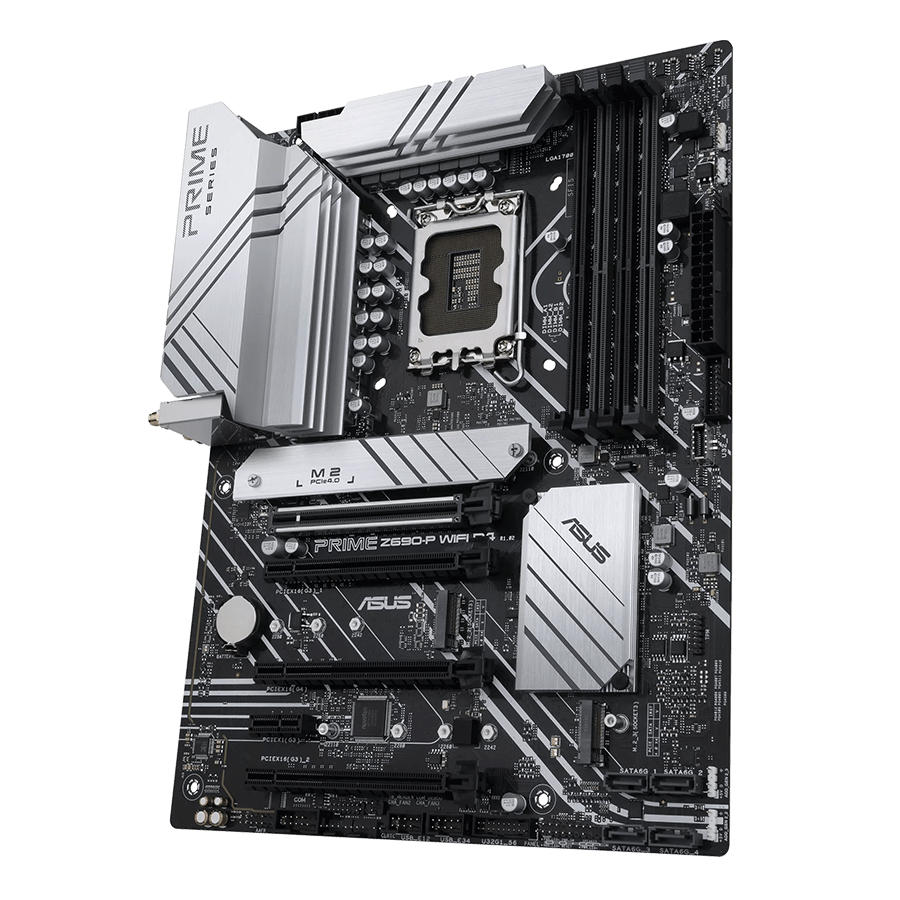

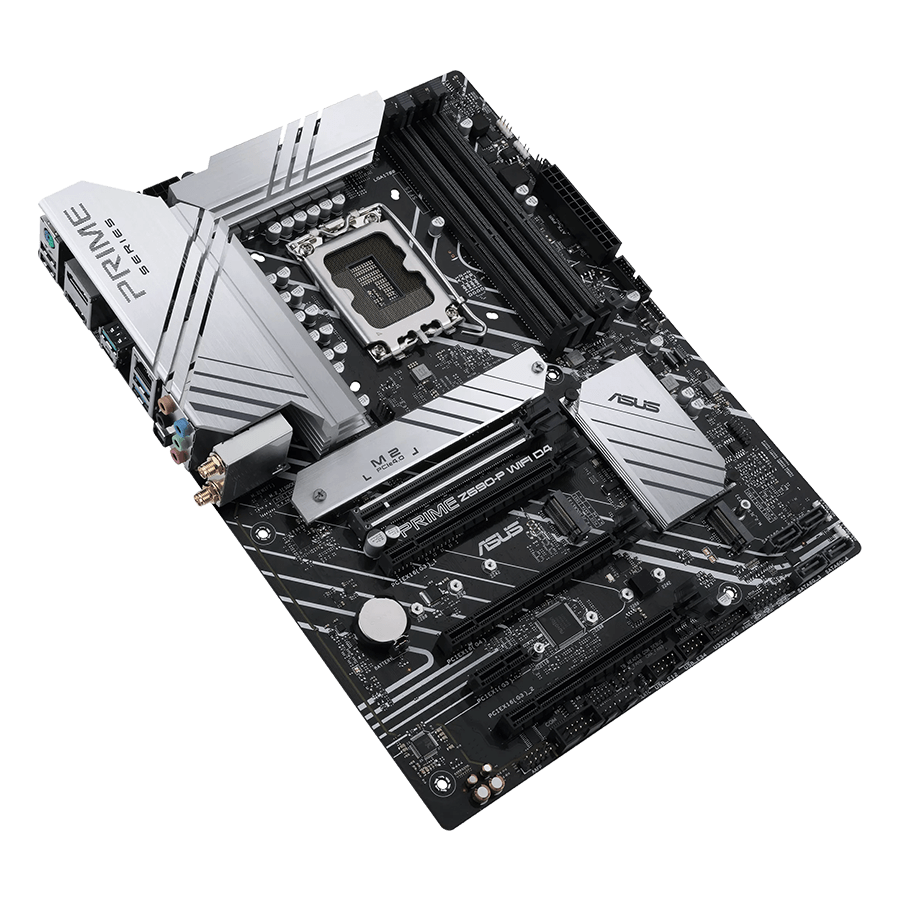

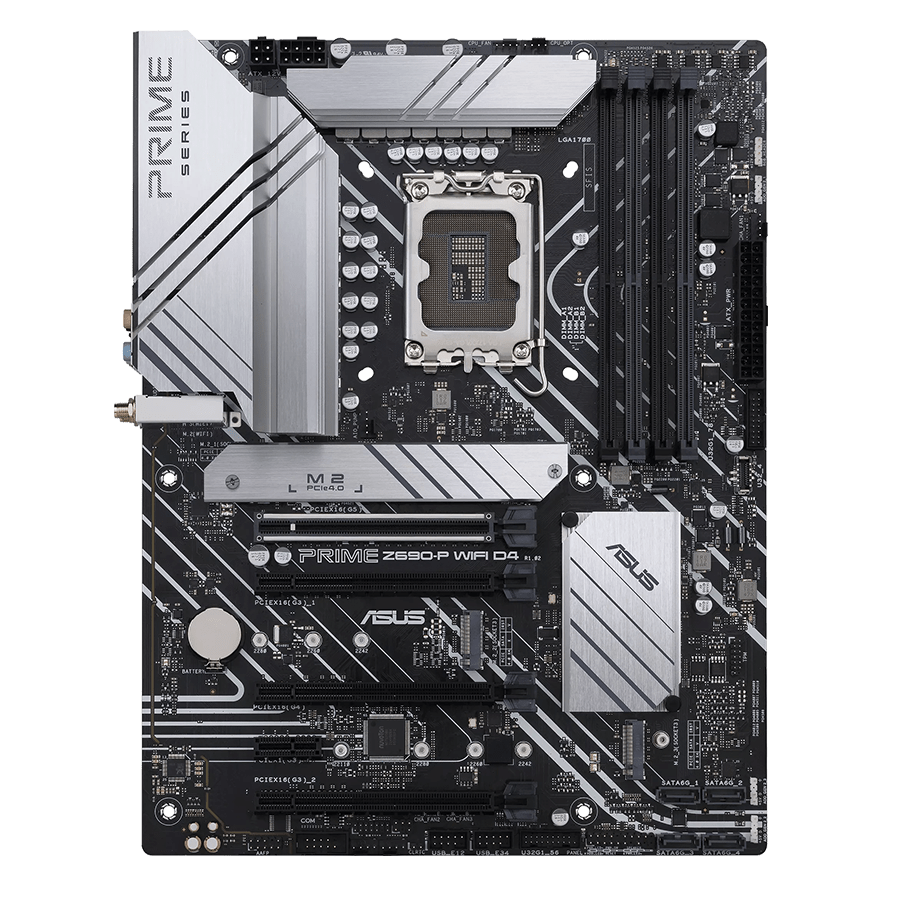

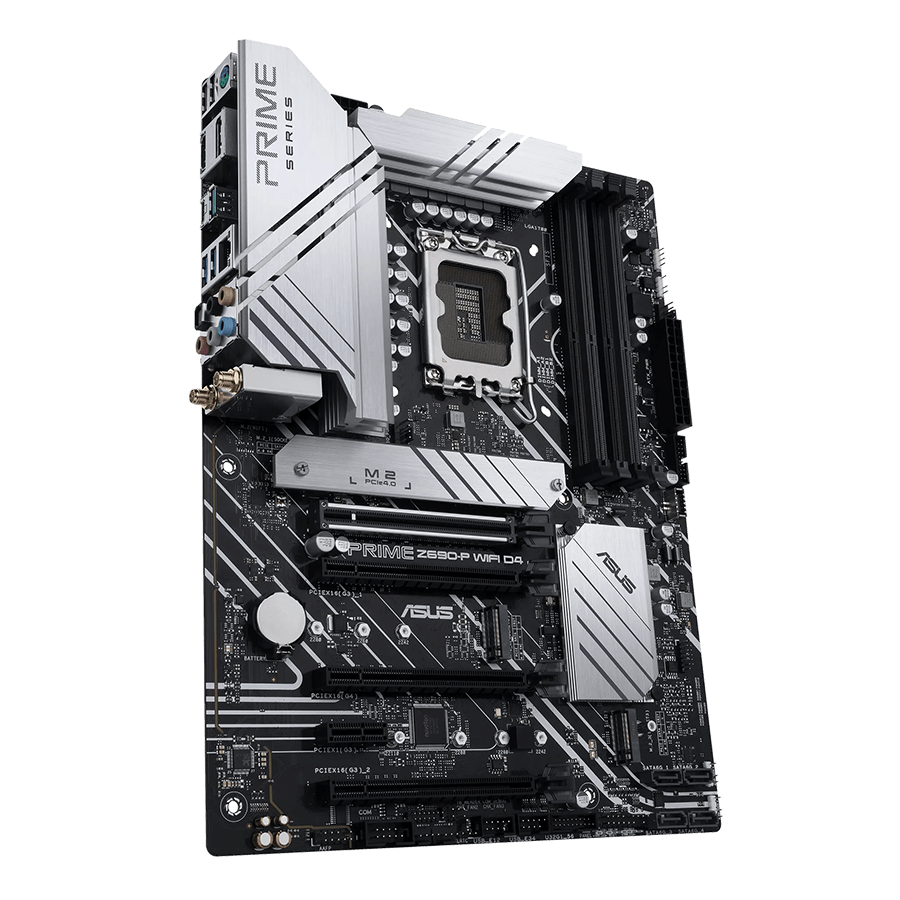

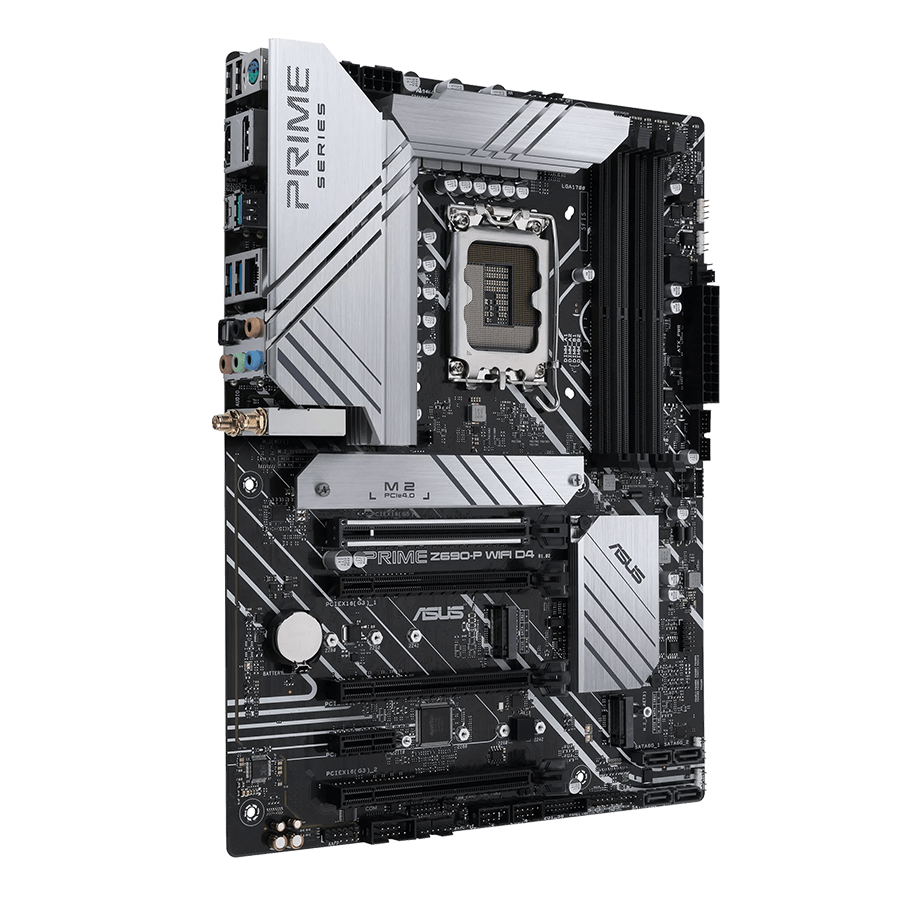

ASUS Motherboard PRIME Z690-P WIFI D4 — Main view

Photo 1/6

Specifications

Technical specs

Motherboard

Platform: Intel
Chipset: Intel Z690
Form factor: ATX
Clear CMOS: No
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Series: Prime

Processor

CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU generation: 12th gen, 13th gen
CPU power circuit: 14+1 فاز
CPU power connector: یک pcs 4 پین, یک pcs 8 پین

Memory

RAM slots: 4 pcs
Memory type: DDR4
RAM capacity: 128 GB
Memory: up to 5333 MHz

Expansion Slots

PCIe x16: یک slot PCIe 3.0 x16, یک slot PCIe 5.0 x16, یک slot PCIe 4.0 x16
PCIe x1: 1 PCS, PCIe 3.0
PCIe x4: No

Storage

M.2: سه pcs PCIe 4.0
SATA III: 4 pcs
RAID: RAID 0/1/5/10

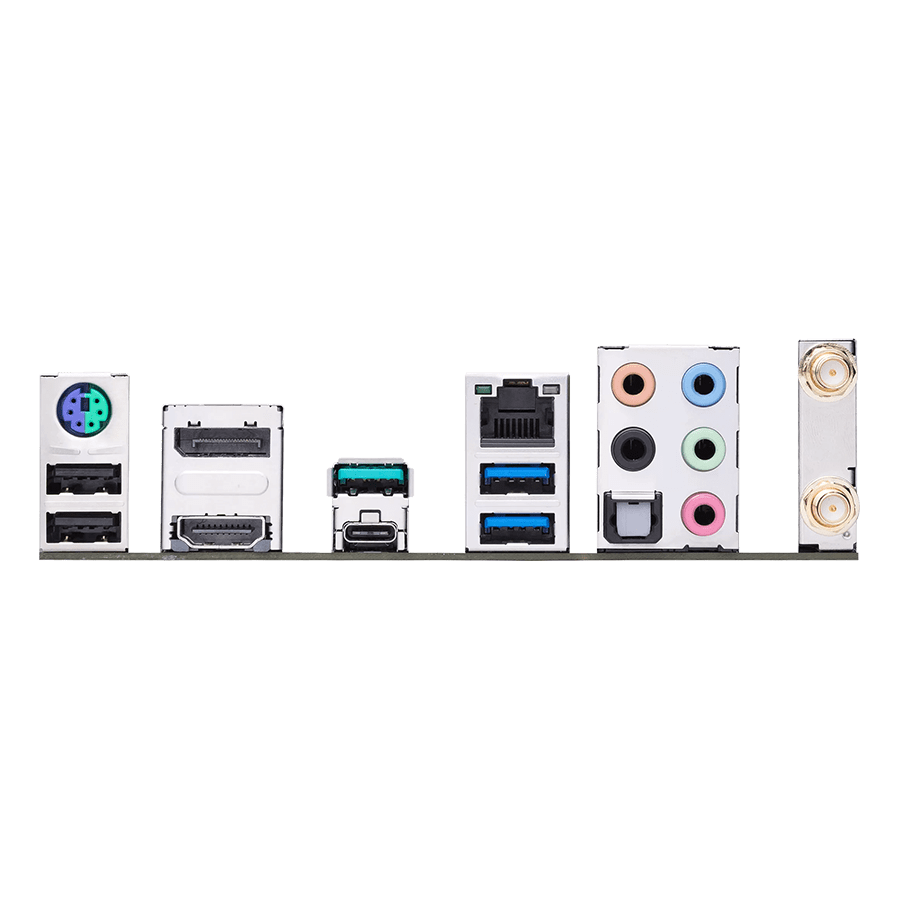

I/O & Connectivity

USB 2.0: 2 PCS
USB 3.2: 4 pcs
USB 3.0: No
USB 3.1: No
LAN: Realtek 2.5Gb Ethernet
HDMI: Yes
DisplayPort: Yes
Thunderbolt: 1 PCS, به صورت کانکتور connectivity
Wi-Fi: Intel Wi-Fi 6
Communication protocols: 802.11a/b/g/n/ac/ax, supports frequency 2.4/5 گیگاهرتز
Bluetooth: نسخه 5.2
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio channels: 7.1 کانال
Digital audio: OPTICAL S/PDIF
