ASUS

ASUS Motherboard PRIME Z790-A WIFI

ASUS PRIME Z790-A WIFI MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 6E with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

ASUS PRIME Z790-A WIFI MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 6E with lighting header ARGB

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

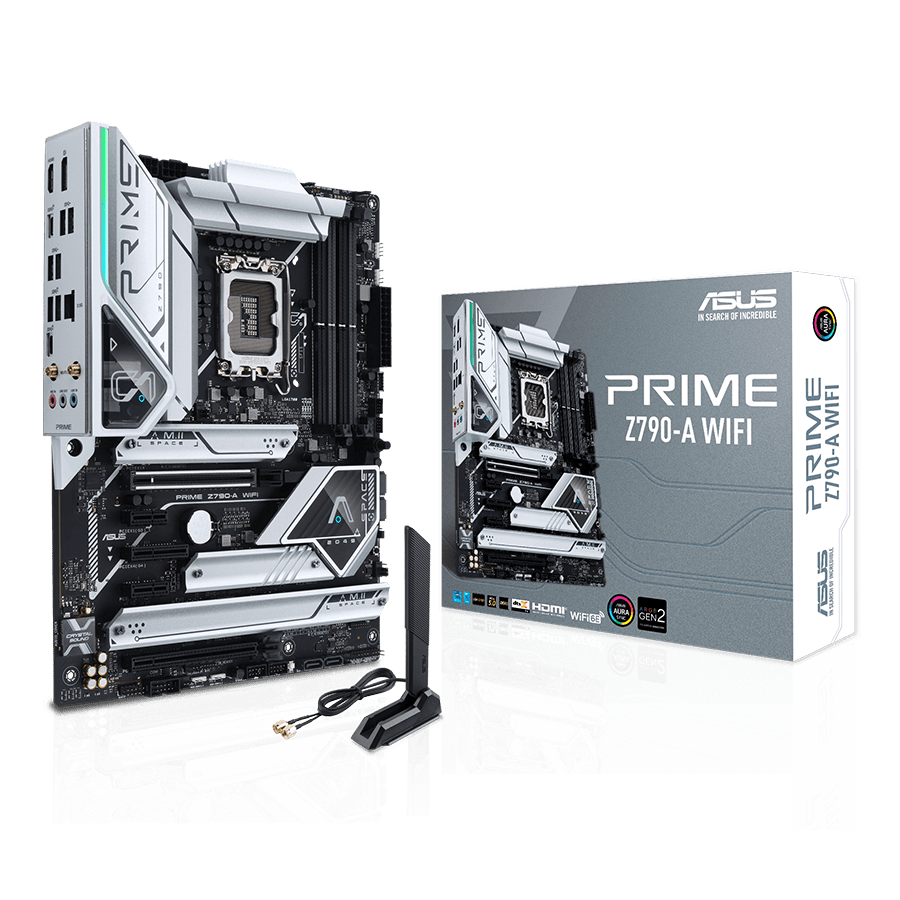

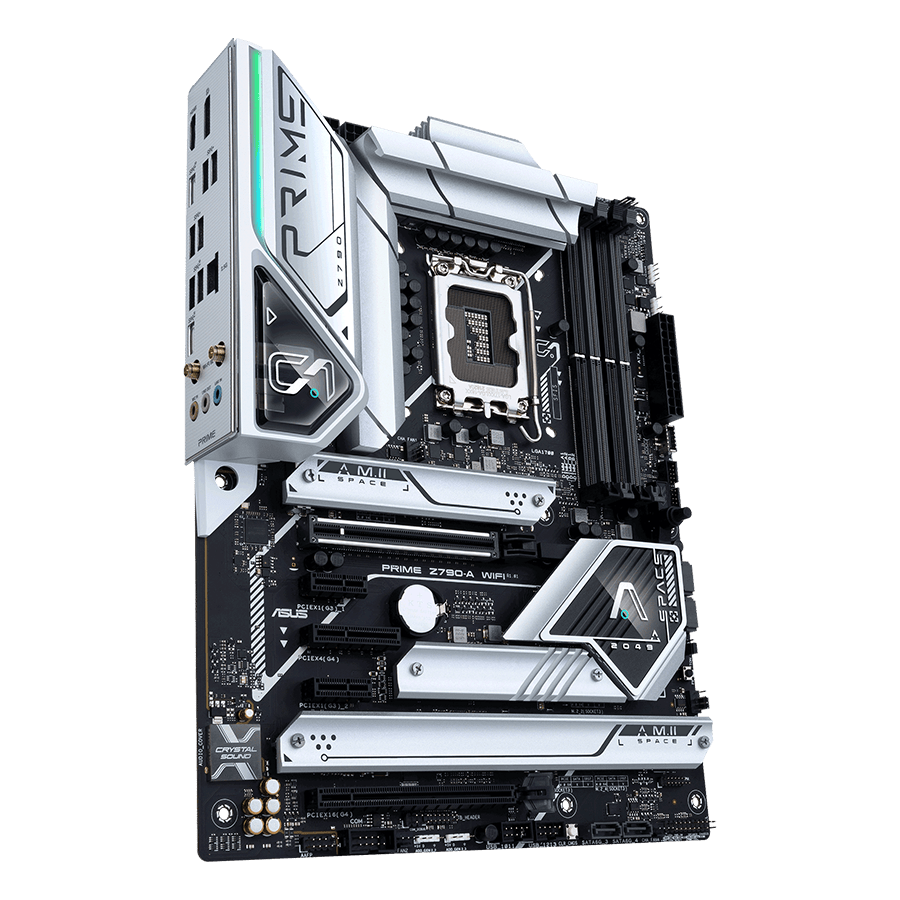

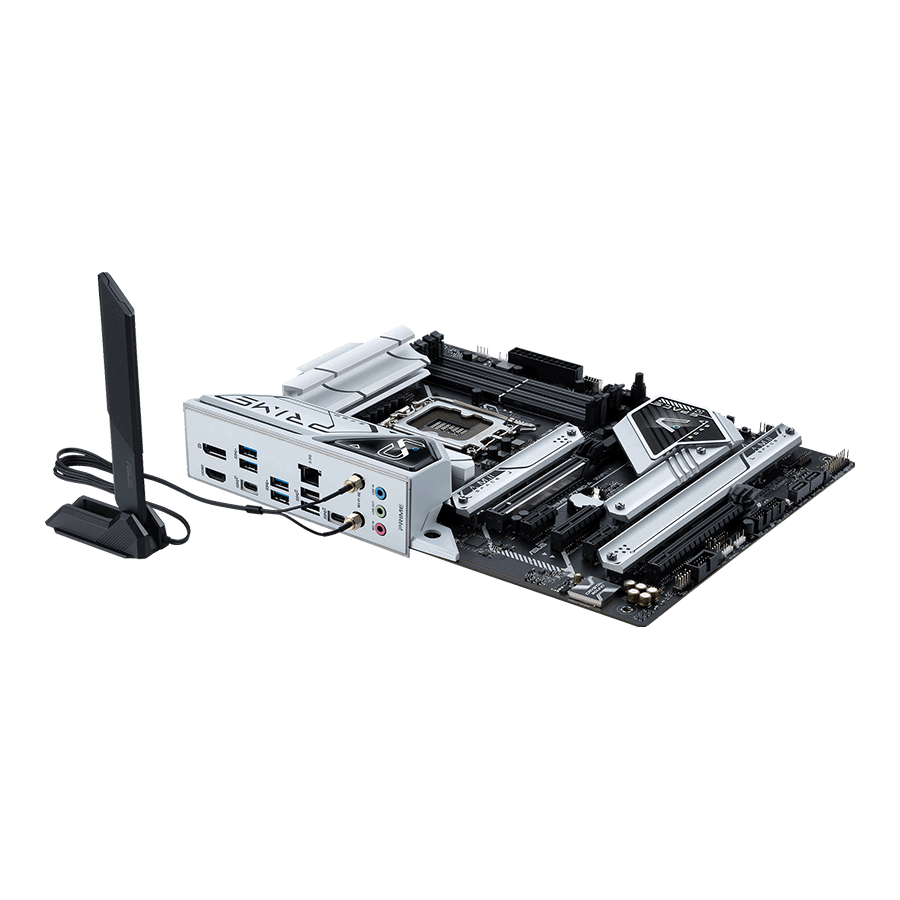

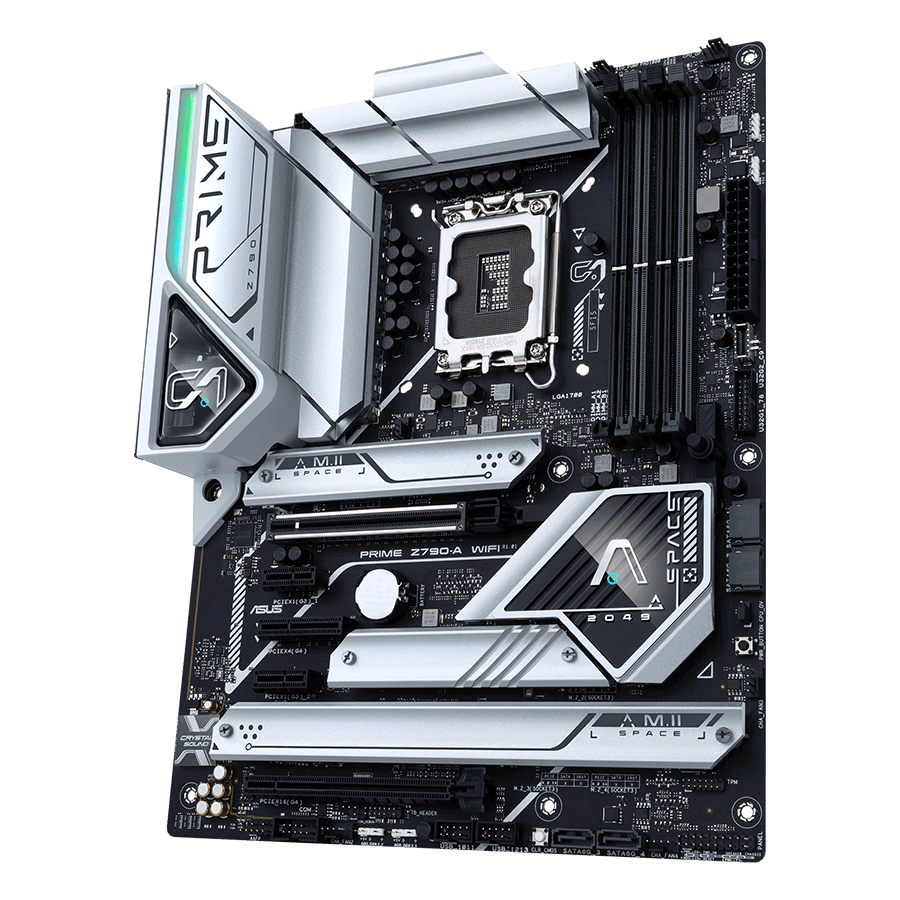

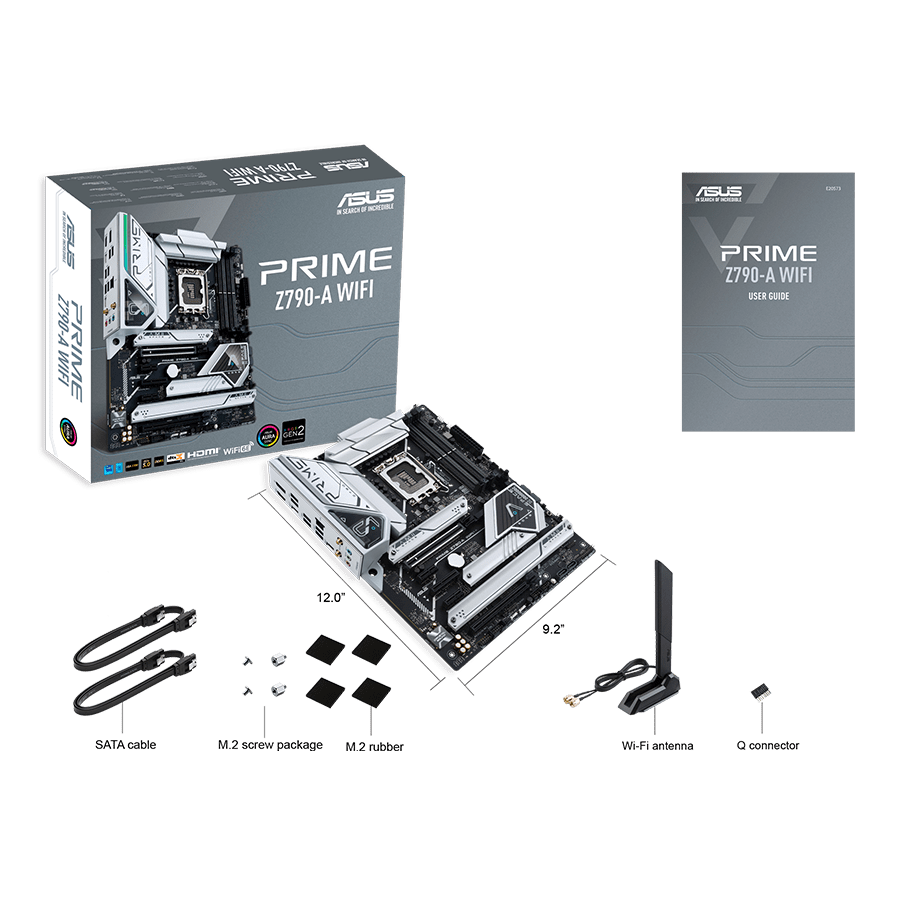

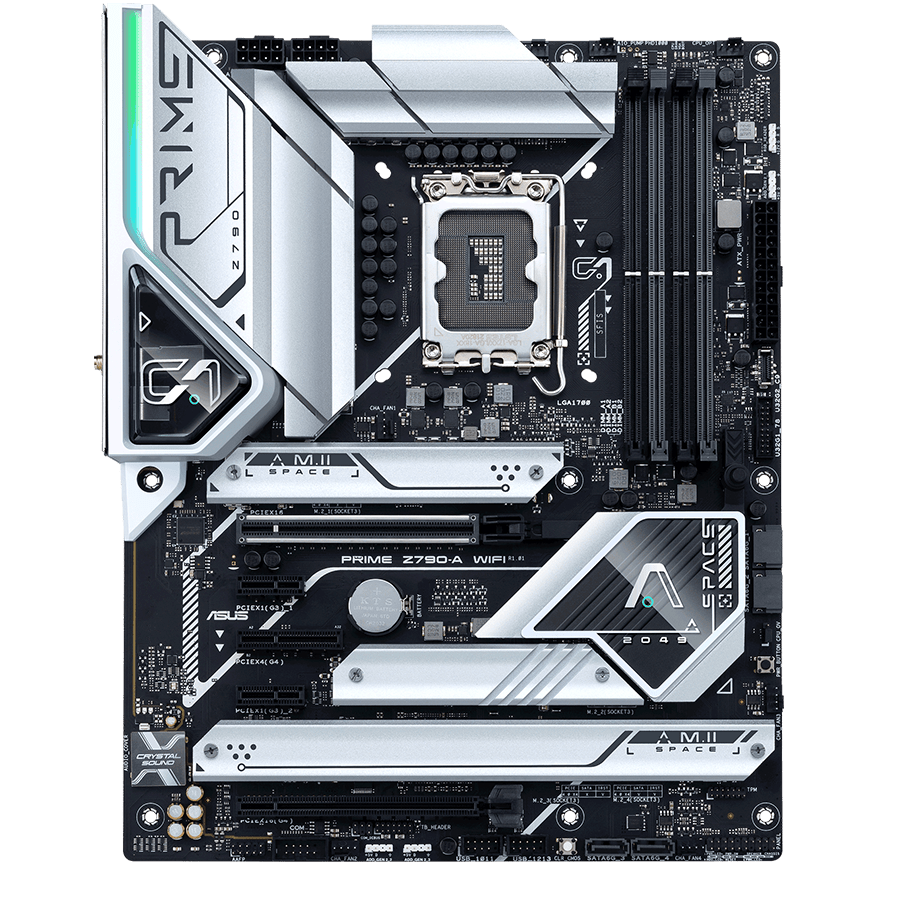

ASUS Motherboard PRIME Z790-A WIFI — Main view

Photo 1/7

Specifications

Technical specs

Motherboard

Platform: Intel
Chipset: Intel Z790
Form factor: ATX
Clear CMOS: Yes
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Series: Prime

Processor

CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU generation: 13th gen, 12th gen
CPU power circuit: 16+1 فاز
CPU power connector: دو pcs کانکتور 8 پین

Memory

RAM slots: 4 pcs
Memory type: DDR5
RAM capacity: 128 GB
Memory: up to 7200 MHz

Expansion Slots

PCIe x16: یک slot PCIe 4.0 x16, یک slot PCIe 5.0 x16
PCIe x4: 1 PCS, PCIe 4.0
PCIe x1: 2 PCS, PCIe 3.0

Storage

SATA III: 4 pcs
M.2: چهار pcs PCIe 4.0
RAID: RAID 0/1/5/10

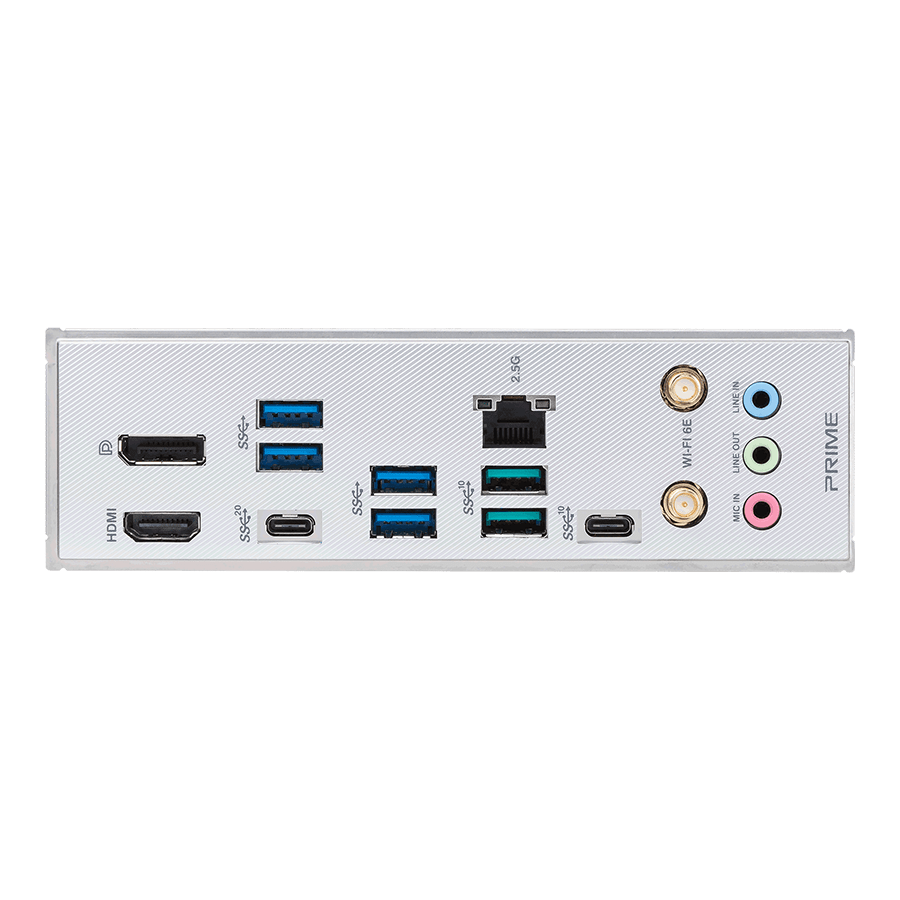

I/O & Connectivity

Thunderbolt: به صورت کانکتور connectivity
USB 2.0: 2 PCS
USB 3.0: No
USB 3.1: No
USB 3.2: 8 pcs
HDMI: Yes
DisplayPort: Yes
LAN: Intel 2.5Gb Ethernet port
Bluetooth: نسخه 5.3
Wi-Fi: Intel Wi-Fi 6E
Communication protocols: 802.11a/b/g/n/ac/ax, supports frequency 2.4/5/6 گیگاهرتز
Audio: Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
Audio channels: 7.1 کانال
Digital audio: No
