ASUS Motherboard ProArt Z790-CREATOR WIFI

ASUS ProArt Z790-CREATOR WIFI MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 6E with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

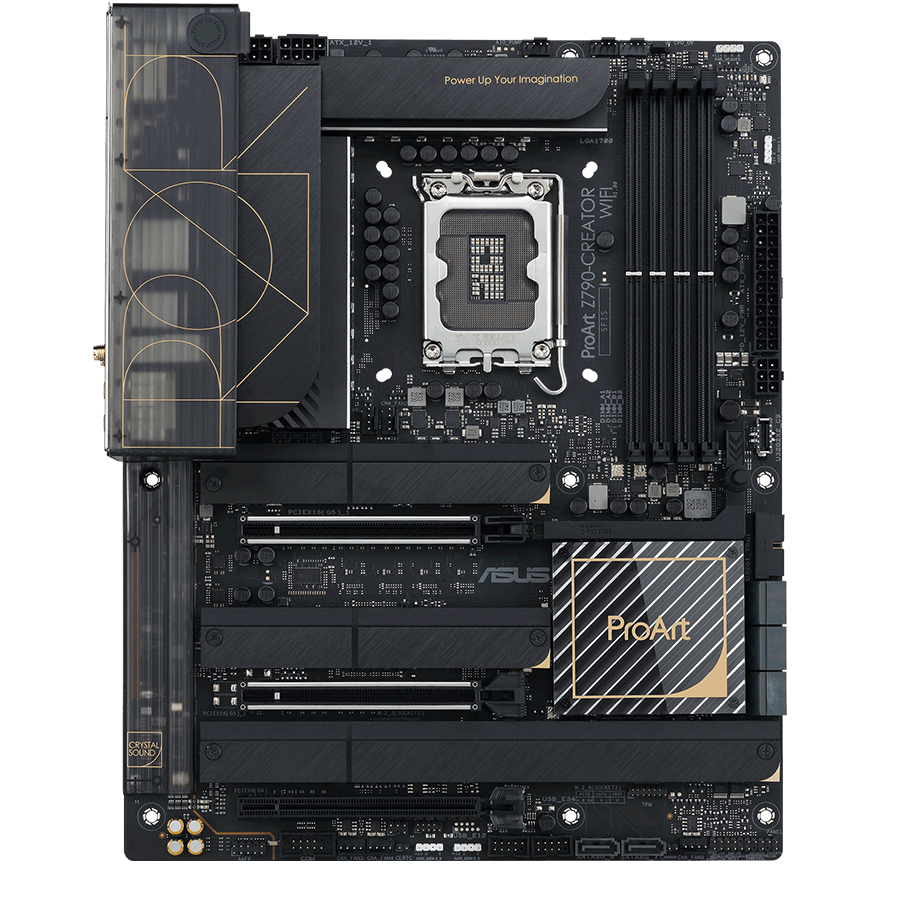

ASUS Motherboard ProArt Z790-CREATOR WIFI — Main view

Photo 1/8

Specifications

Technical specs

Motherboard

Platform: Intel
Chipset: Intel Z790
Form factor: ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Clear CMOS: Yes
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Series: ProArt

Processor

CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU generation: 13th gen, 12th gen
CPU power circuit: 16+1 فاز
CPU power connector: دو pcs کانکتور 8 پین

Memory

RAM slots: 4 pcs
Memory type: DDR5
RAM capacity: 128 GB
Memory: up to 7200 MHz

Expansion Slots

PCIe x16: یک slot PCIe 4.0 x16, دو slot PCIe 5.0 x16
PCIe x4: No
PCIe x1: No

Storage

SATA III: 6 pcs
M.2: چهار pcs PCIe 4.0
RAID: RAID 0/1/5/10

I/O & Connectivity

Digital audio: No
Thunderbolt: 2 pcs مشترک با USB Type-C
USB 2.0: 2 PCS
USB 3.0: No
USB 3.1: No
USB 3.2: 8 pcs
HDMI: Yes
DisplayPort: Yes
LAN: Marvell 10Gb Ethernet port, Intel 2.5Gb Ethernet port
Wi-Fi: Intel Wi-Fi 6E
Communication protocols: 802.11a/b/g/n/ac/ax, supports frequency 2.4/5/6 گیگاهرتز
Bluetooth: نسخه 5.2
Audio: Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
Audio channels: 7.1 کانال
