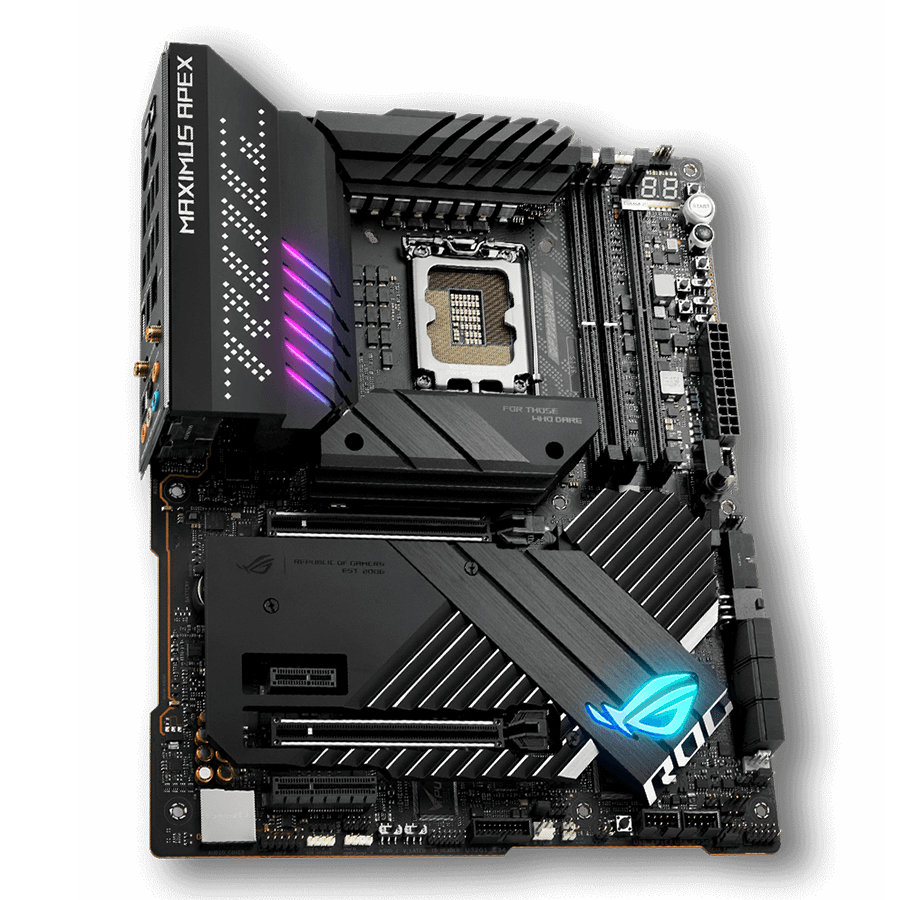

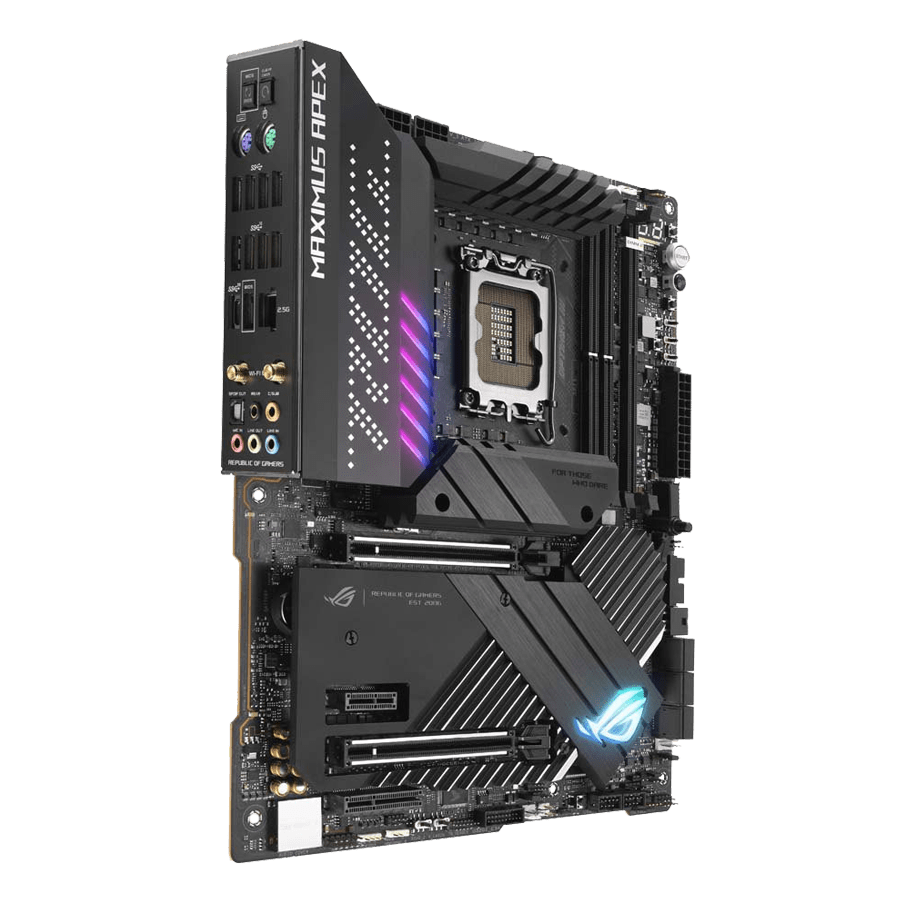

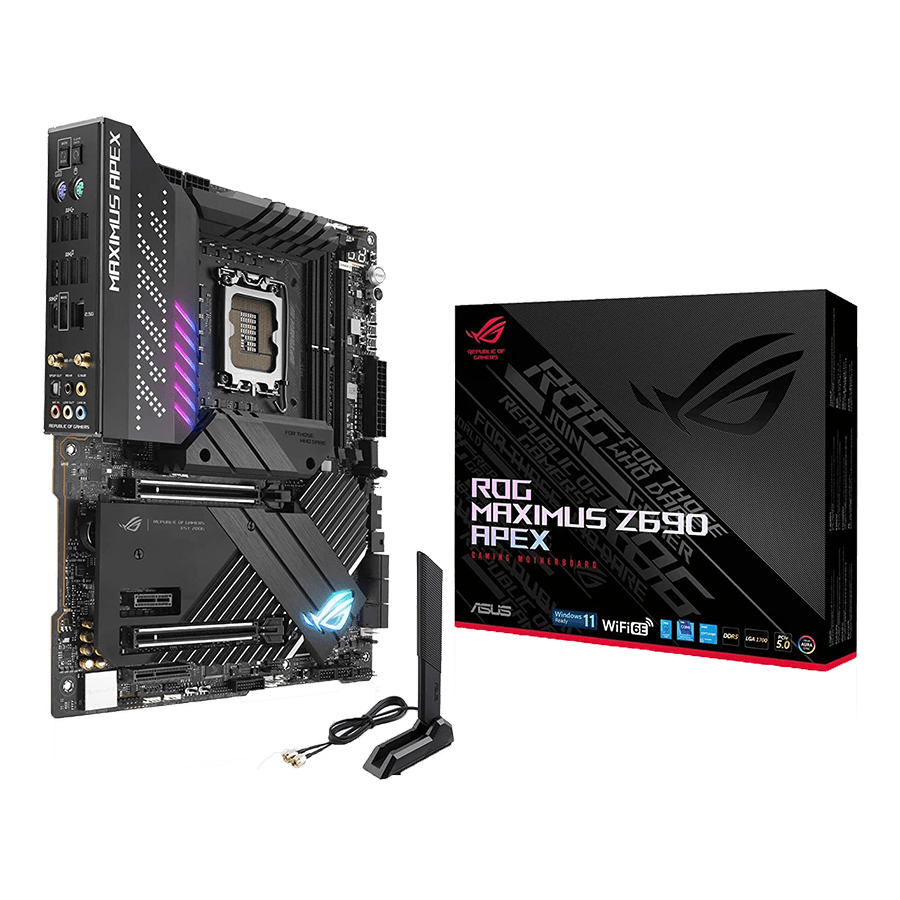

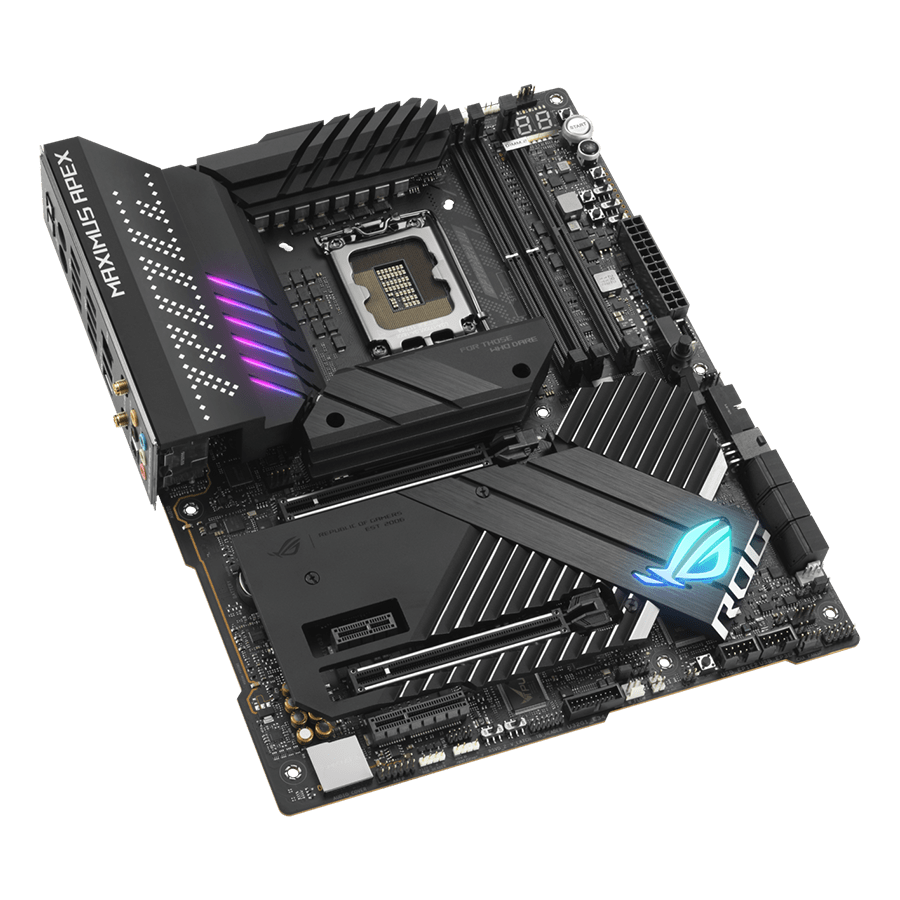

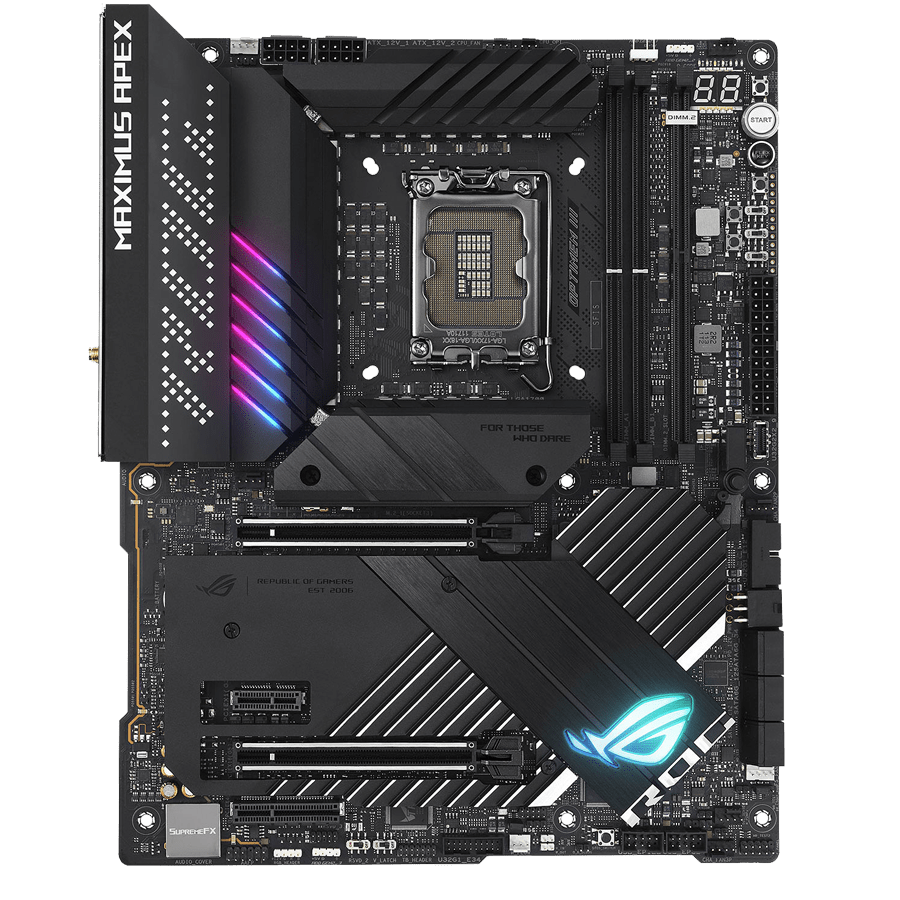

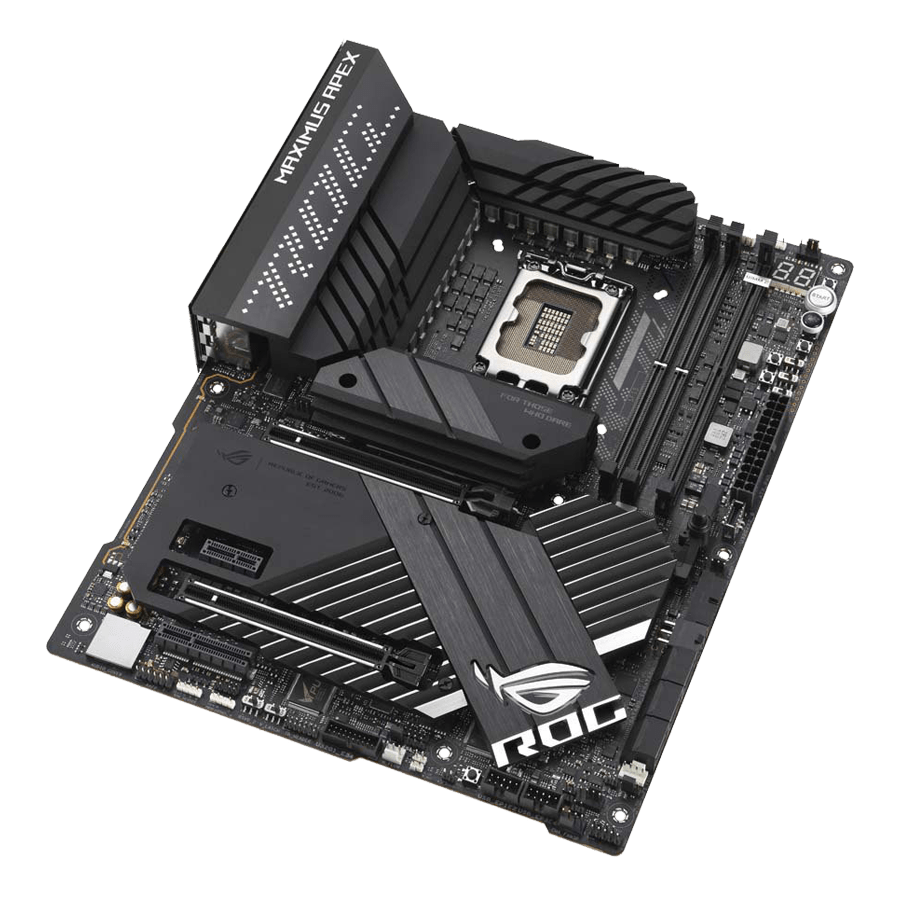

ASUS Motherboard ROG MAXIMUS Z690 APEX
ASUS ROG MAXIMUS Z690 APEX MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 5.0 supports SLI/CrossFireX supports connectivity Wi-Fi 6E with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS ROG MAXIMUS Z690 APEX MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 5.0 supports SLI/CrossFireX supports connectivity Wi-Fi 6E with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Motherboard
- Chipset
- Intel Z690
- Platform
- Intel
- Form factor
- ATX
- BIOS
- 2x 256MB Flash ROM, UEFI AMI BIOS
- Clear CMOS
- Yes
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- ROG MAXIMUS
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 12th gen, 13th gen
- CPU power connector
- دو pcs کانکتور 8 پین
- CPU power circuit
- 24+0 فاز
Memory
- RAM slots
- 2 PCS
- RAM capacity
- 64 GB
- Memory type
- DDR5
- Memory
- up to 6600 MHz
Expansion Slots
- PCIe x16
- دو slot PCIe 5.0 x16
- PCIe x4
- 1 PCS, PCIe 3.0
- PCIe x1
- 1 PCS, PCIe 3.0
Storage
- M.2

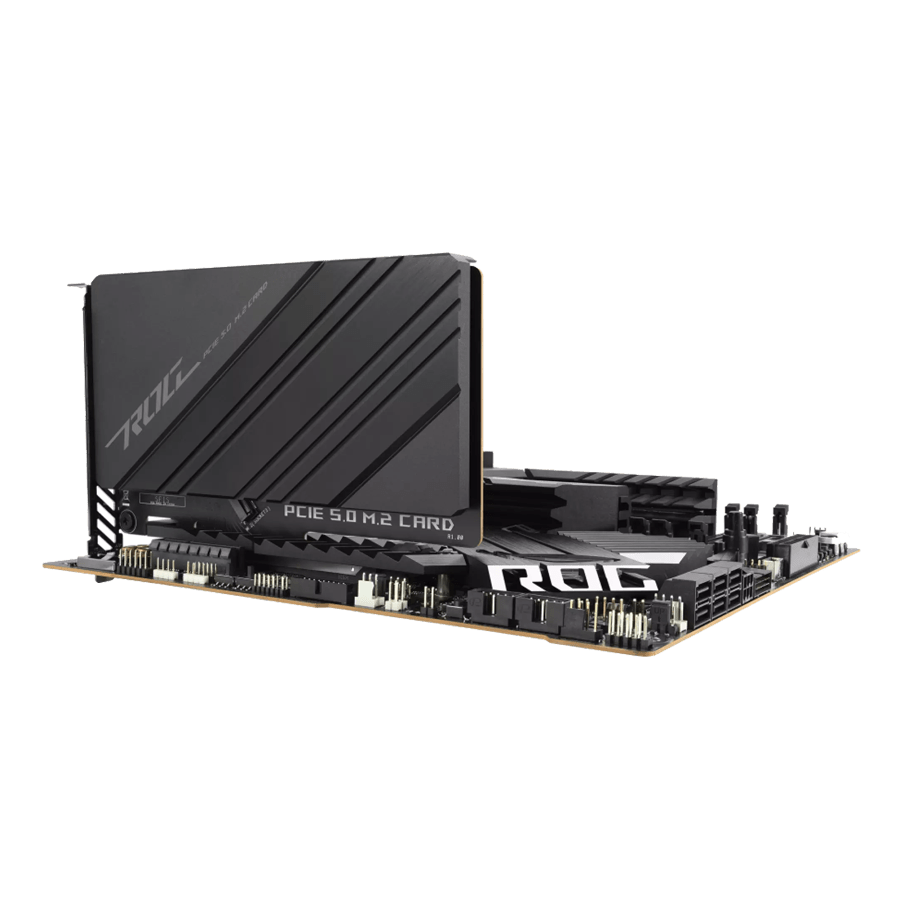

- یک pcs PCIe 5.0 بر روی expansion slot جداگانه, چهار pcs PCIe 4.0
- SATA III
- 6 pcs
- RAID
- بله

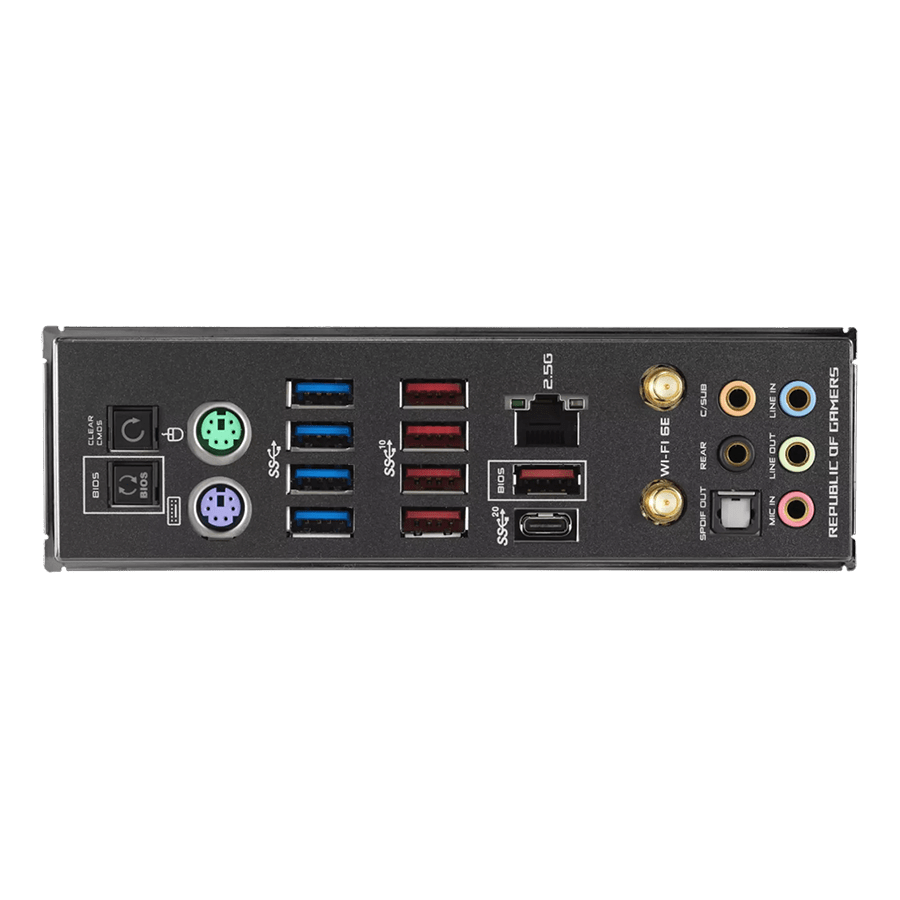

I/O & Connectivity
- USB 2.0
- به صورت کانکتور connectivity به کیس, 2 PCS
- USB 3.2
- 10 pcs
- USB 3.0
- No
- USB 3.1
- No
- HDMI
- No
- DisplayPort
- No
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- LAN
- Intel 2.5Gb Ethernet port
- Wi-Fi
- Intel Wi-Fi 6E
- Communication protocols
- 802.11a/b/g/n/ac/ax, supports frequency 2.4/5/6 گیگاهرتز
- Bluetooth
- نسخه 5.2
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Audio channels
- 7.1 کانال
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- Yes
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- Supports AMD 2-Way CrossFireX Technology, Supports NVIDIA® 2-Way SLI® Technology
- Intel Optane
- Yes
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 5 pcs
- Debug display
- Yes
- LED color
- ARGB
