ASUS

ASUS Motherboard ROG STRIX B760-F GAMING WIFI

ASUS ROG STRIX B760-F GAMING WIFI 13th gen Intel chipset B760 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

ASUS ROG STRIX B760-F GAMING WIFI 13th gen Intel chipset B760 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

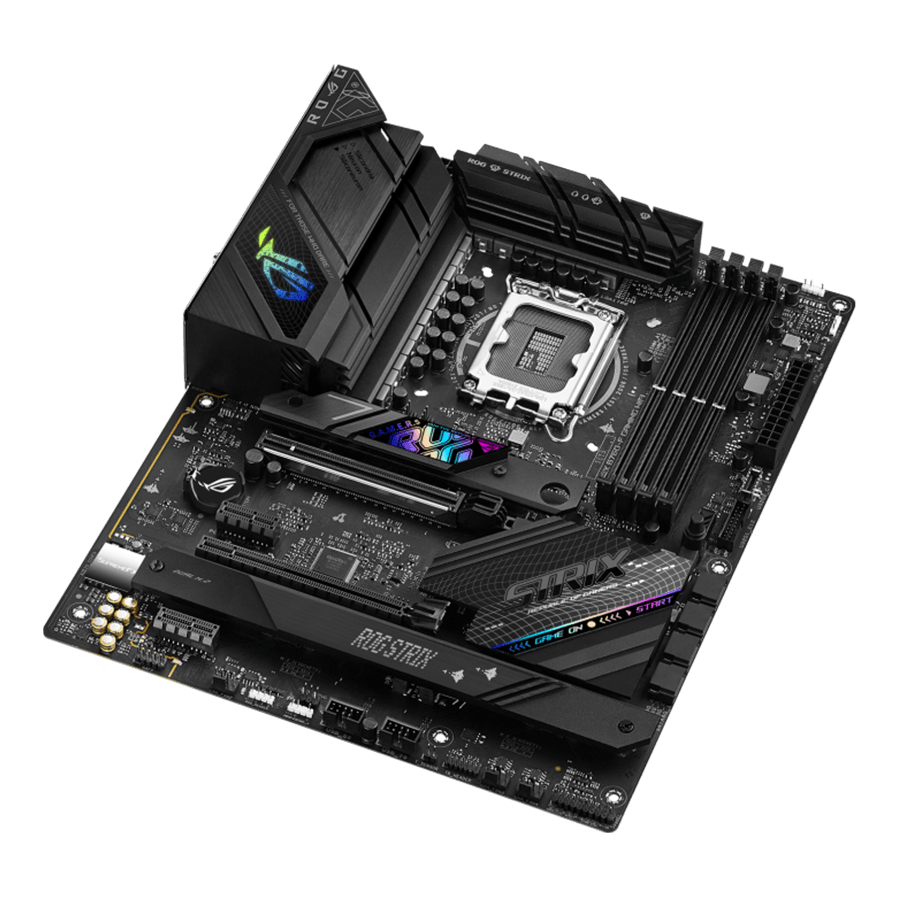

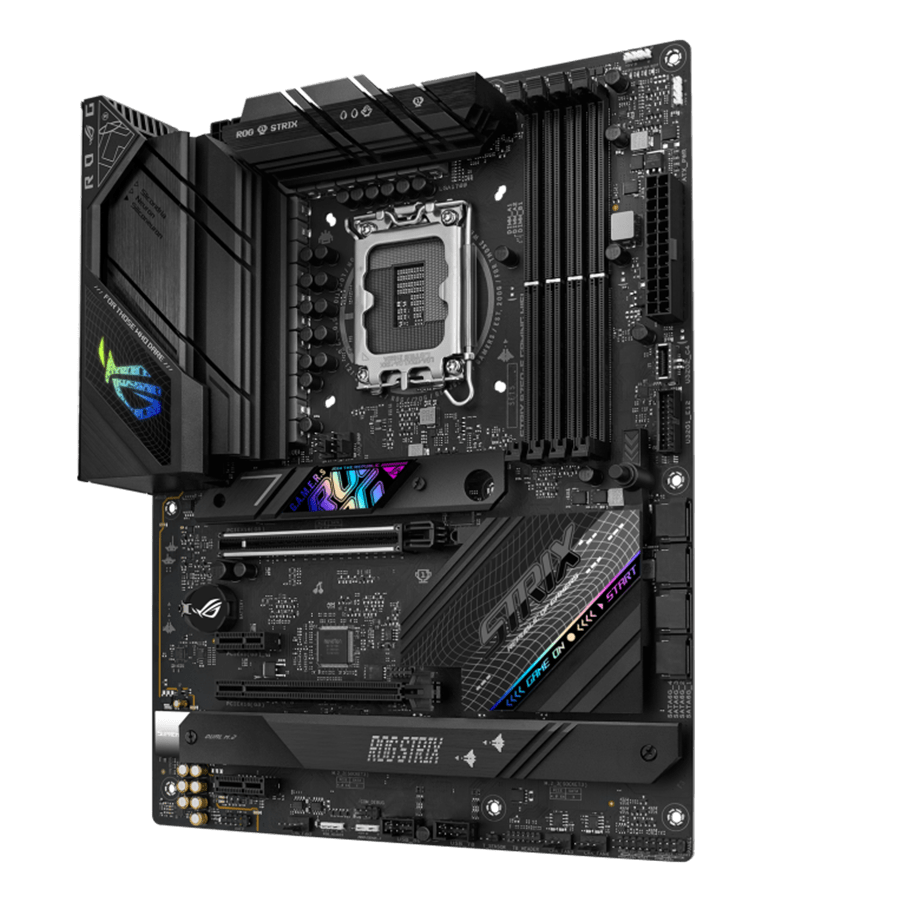

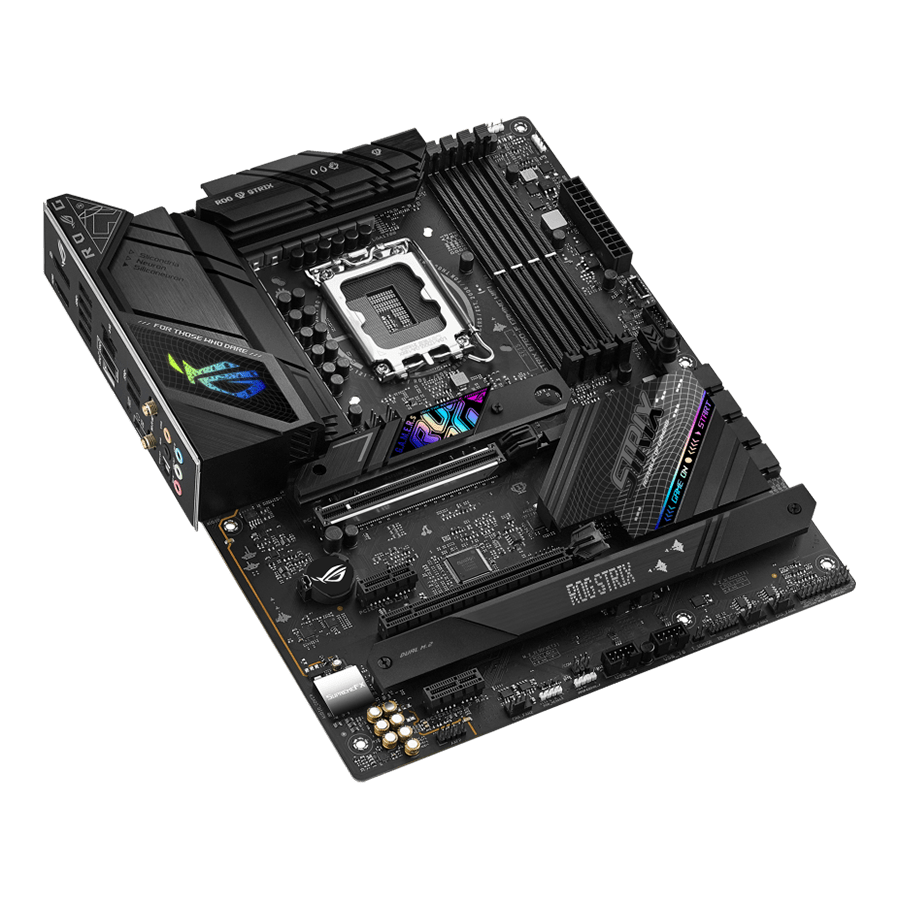

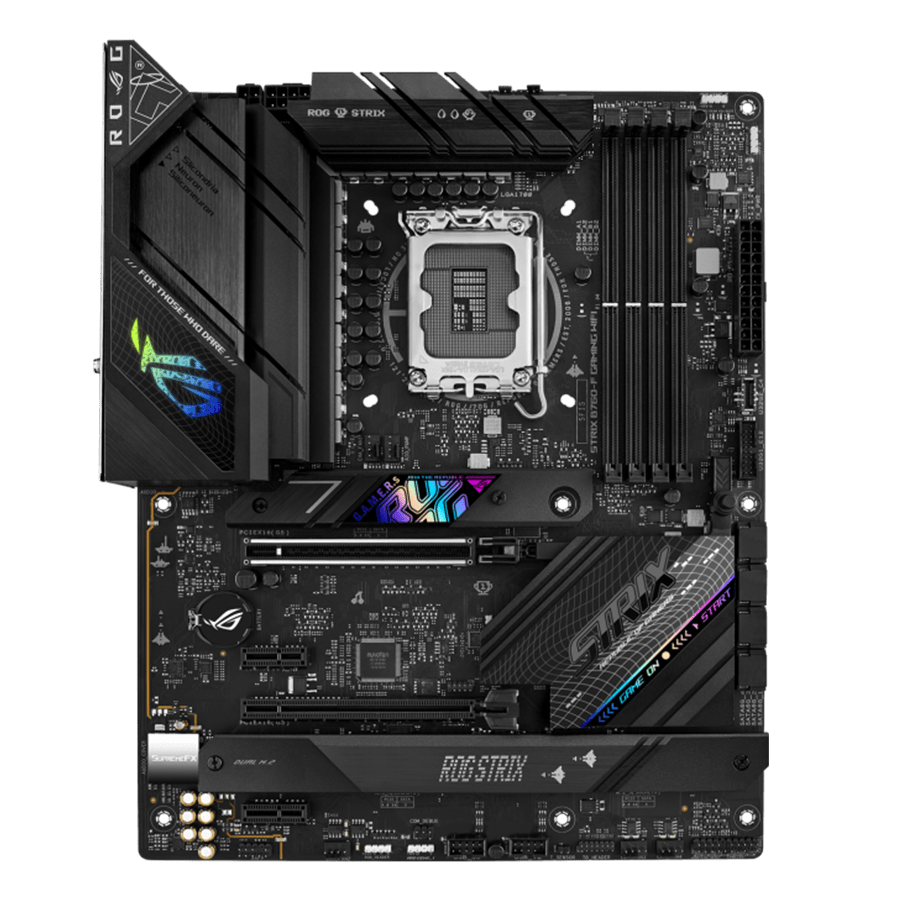

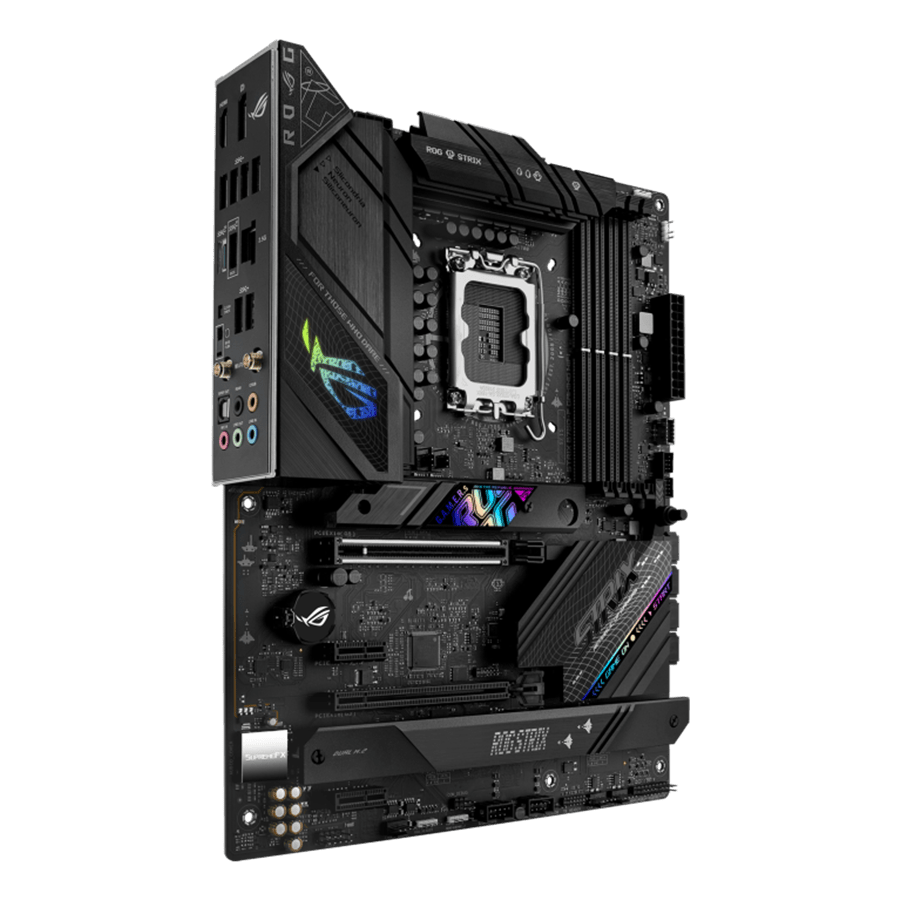

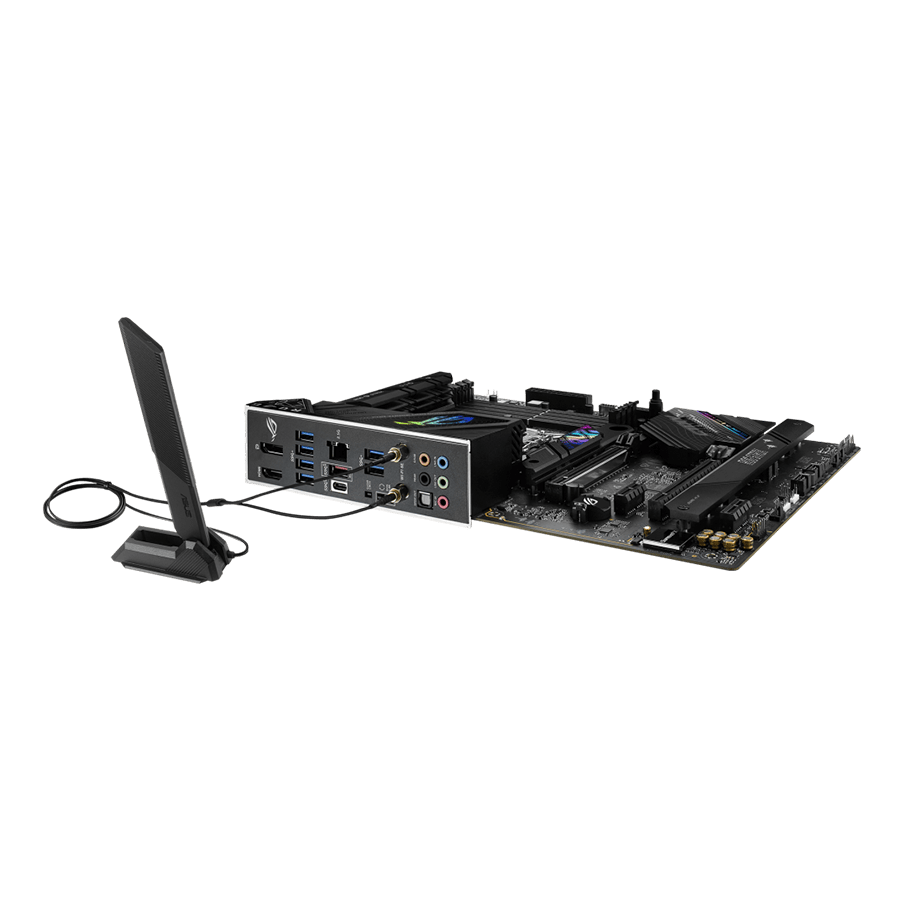

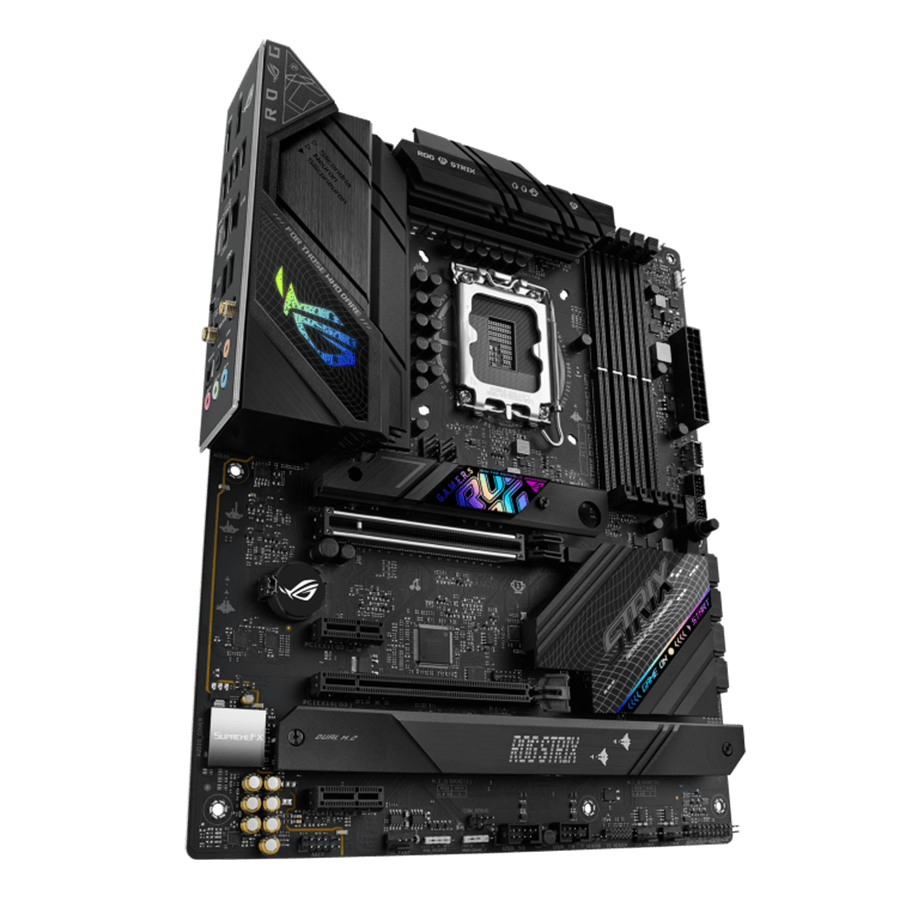

ASUS Motherboard ROG STRIX B760-F GAMING WIFI — Main view

Photo 1/7

Specifications

Technical specs

Motherboard

Platform: Intel
Form factor: ATX
Clear CMOS: Yes
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Chipset: Intel B760
Series: ROG STRIX

Processor

CPU generation: 13th gen
CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU power circuit: 16+1 فاز
CPU power connector: یک pcs 4 پین, یک pcs 8 پین

Memory

Memory: up to 7800 MHz
RAM slots: 4 pcs
Memory type: DDR5
RAM capacity: 128 GB

Expansion Slots

PCIe x16: یک slot PCIe 3.0 x16, یک slot PCIe 5.0 x16
PCIe x4: No
PCIe x1: 2 PCS, PCIe 3.0

Storage

M.2: سه pcs PCIe 4.0
SATA III: 4 pcs
RAID: RAID 0/1/5/10

I/O & Connectivity

USB 3.2: 8 pcs
USB 2.0: به صورت کانکتور connectivity به کیس, 2 PCS
USB 3.0: No
USB 3.1: No
Wi-Fi: Intel Wi-Fi 6E
HDMI: Yes
DisplayPort: Yes
Thunderbolt: 1 PCS, به صورت کانکتور connectivity
LAN: Intel 2.5Gb Ethernet port
Communication protocols: supports frequency 2.4/5/6 گیگاهرتز, 802.11a/b/g/n/ac/ax
Bluetooth: نسخه 5.3
Digital audio: OPTICAL S/PDIF
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio channels: 7.1 کانال
