ASUS Motherboard ROG STRIX Z690-A GAMING WIFI

ASUS ROG STRIX Z690-A GAMING WIFI MAINBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 4.0 supports RAM DDR5 supports connectivity Wi-Fi 6E with lighting header ARGB

MotherboardASUSOfficial Taba warranty

← Prev Next →

About this product

Details & use

ASUS ROG STRIX Z690-A GAMING WIFI MAINBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 4.0 supports RAM DDR5 supports connectivity Wi-Fi 6E with lighting header ARGB

Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

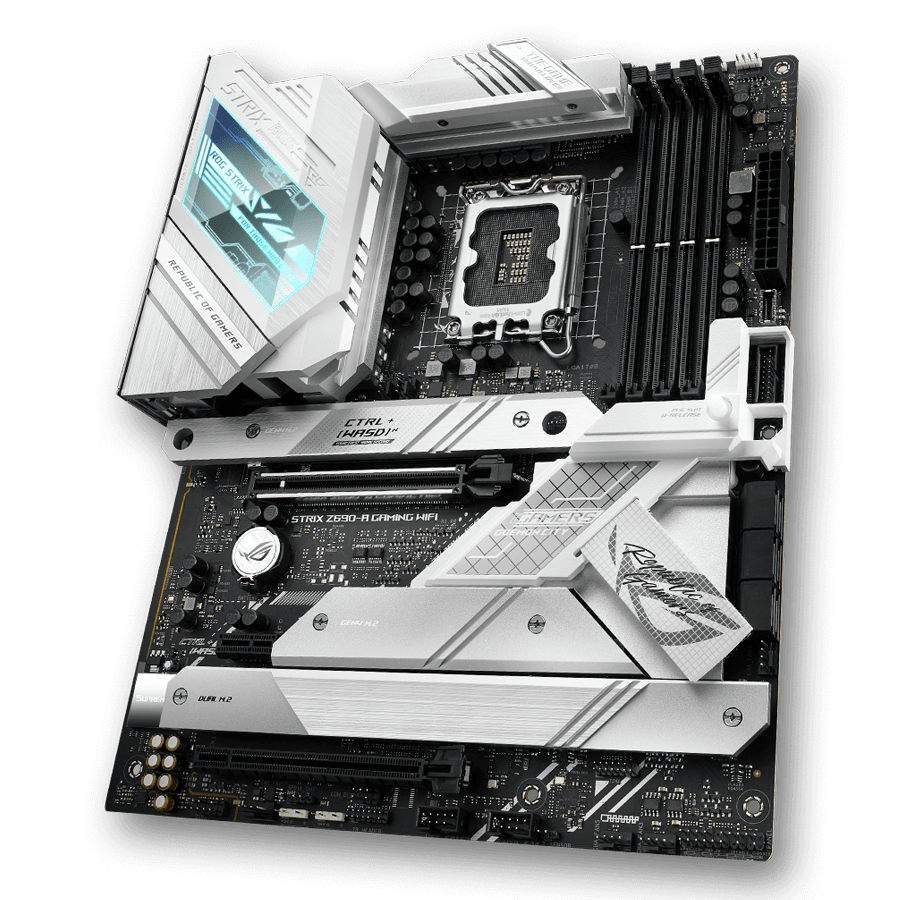

ASUS Motherboard ROG STRIX Z690-A GAMING WIFI — Main view

Photo 1/2

Specifications

Technical specs

Motherboard

Platform: Intel
Chipset: Intel Z690
Form factor: ATX
Clear CMOS: Yes
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Operating system: Windows® 10 64-bit, Windows® 11 64-bit
Series: ROG STRIX

Processor

CPU socket: LGA-1700
Socket: Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
CPU generation: 12th gen, 13th gen
CPU power circuit: 16+1 فاز
CPU power connector: دو pcs کانکتور 8 پین

Memory

RAM slots: 4 pcs
Memory: up to 6400 MHz
RAM capacity: 128 GB
Memory type: DDR5

Expansion Slots

PCIe x16: یک slot PCIe 3.0 x16, یک slot PCIe 5.0 x16
PCIe x4: No
PCIe x1: 1 PCS, PCIe 3.0

Storage

M.2: چهار pcs PCIe 4.0
SATA III: 6 pcs
RAID: بله

I/O & Connectivity

Wi-Fi: Intel Wi-Fi 6E
USB 2.0: 2 PCS
USB 3.0: No
USB 3.1: No
USB 3.2: 8 pcs
HDMI: Yes
DisplayPort: Yes
Thunderbolt: 1 PCS, به صورت کانکتور connectivity
LAN: Intel 2.5Gb Ethernet port
Communication protocols: supports frequency 2.4/5/6 گیگاهرتز, 802.11a/b/g/n/ac/ax
Bluetooth: نسخه 5.2
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio channels: 7.1 کانال
Digital audio: USB Type-C
